8 inch 24v 200w250w350w electric wheelchair motor electric brushless gear hub motor electric wheelbarrow tricycle motor wheel

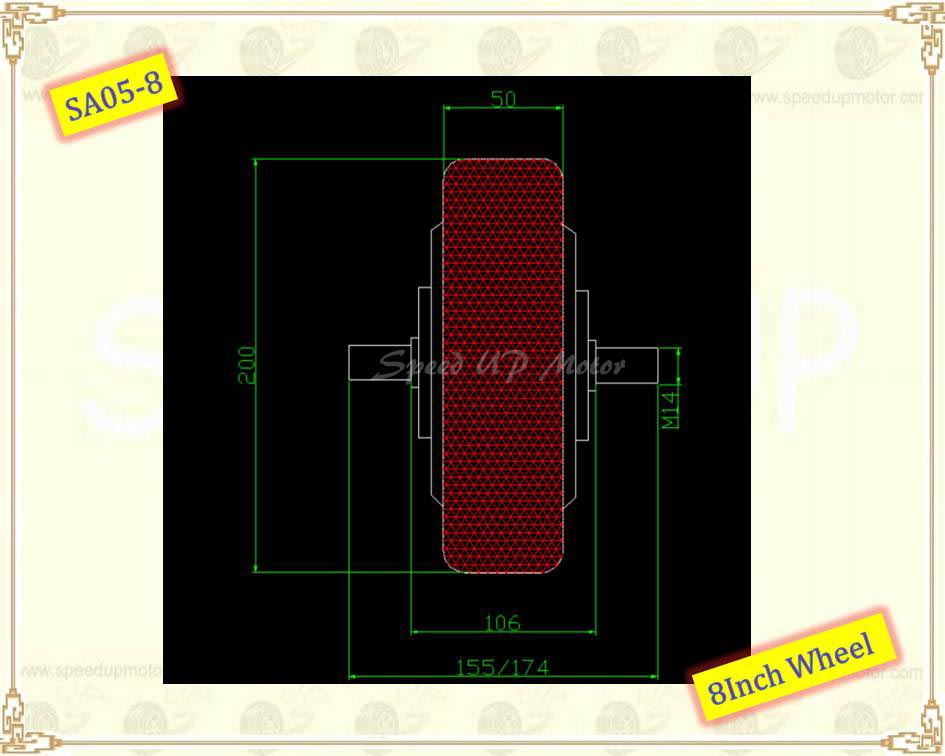

8inch Brushless Wheelchair Motor,SA05-8
8inch brushless wheel motorelder vehicle wheel motorlow speed wheelchair motor,brushless gear

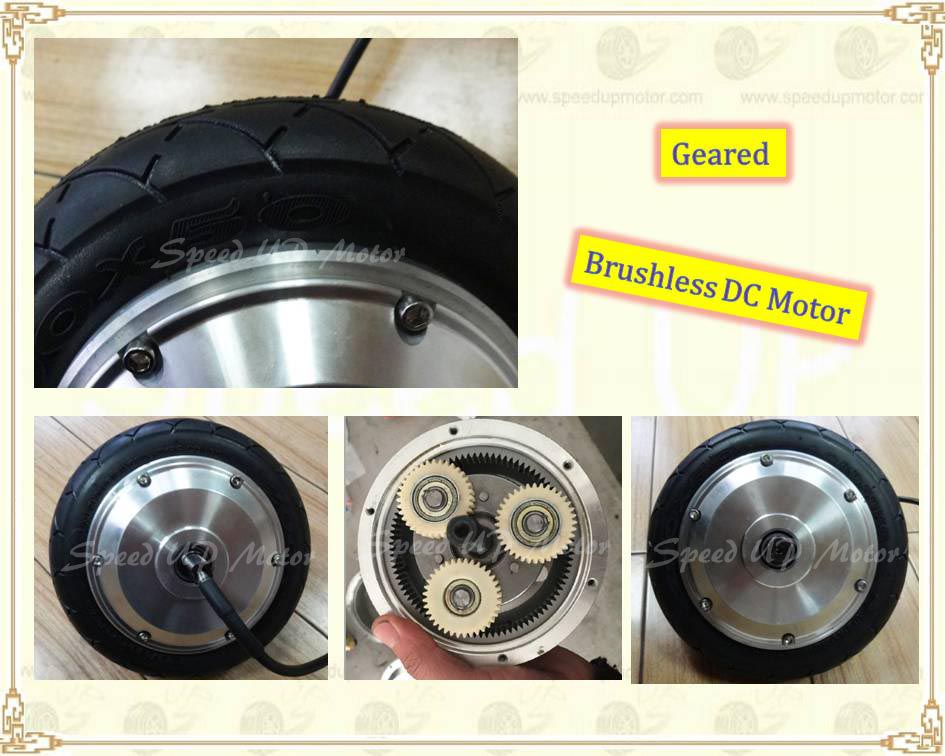

Brushless Geared DC Hub Motor

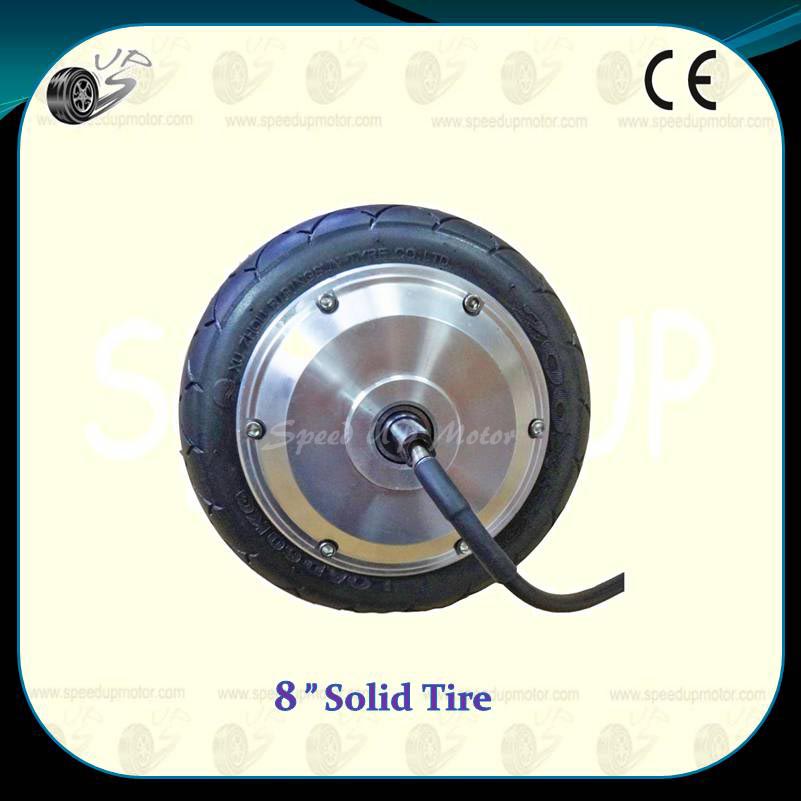

8Inch Solid Tyre

24/36/48V     180-500W   150-500RPM



Most use in Wheelchair, Elder Vehicle,Amusement equipment, Stroller, Bumper car, Electric scooter, Folding generation drive, scooter, Drift car, Small train and So on.

Product Description

Specifications:

Motor 8”brushless geared wheel motor
Voltage 24V
Rated Power 180W
Vehicle speed 6km/h
Rated speed 150rpm
Rated Torque 12Nm
Diameter 200
Weight 3.5kg
Loading 80~300kg
Brake Electronic brake(EABS)/Disc brake
Reduction ratio 1:5
Waterproof Rating IP54
Tire Solid tire
