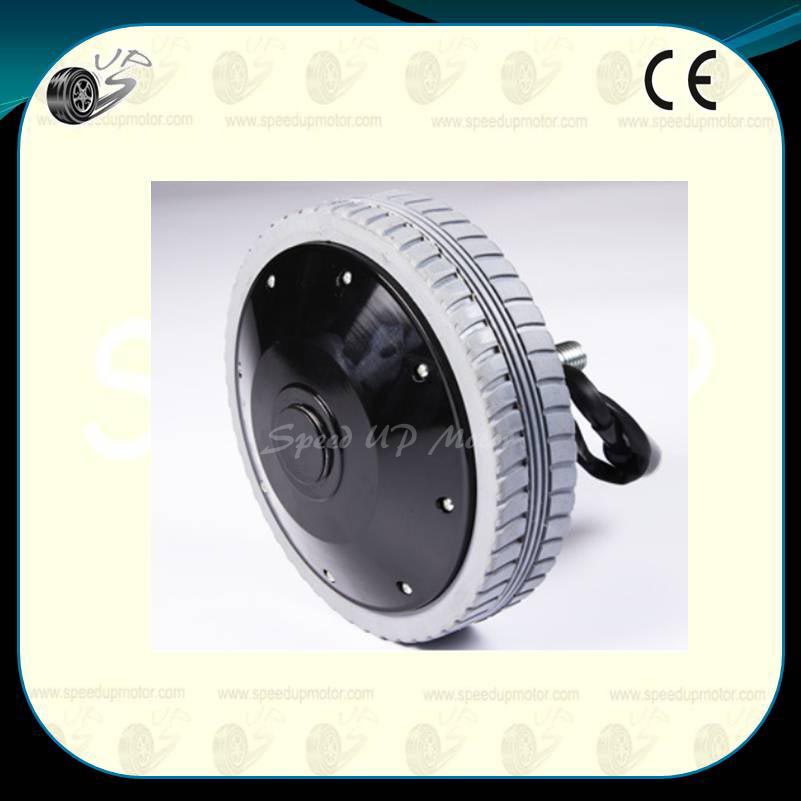

24V180W, 95RPM   DC Brushed Hub Motor

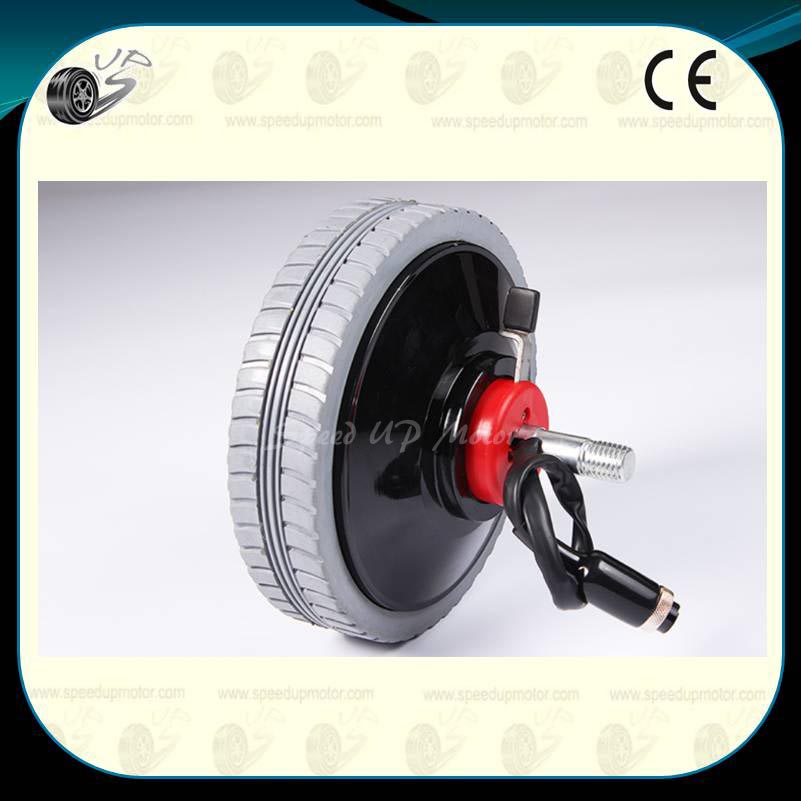

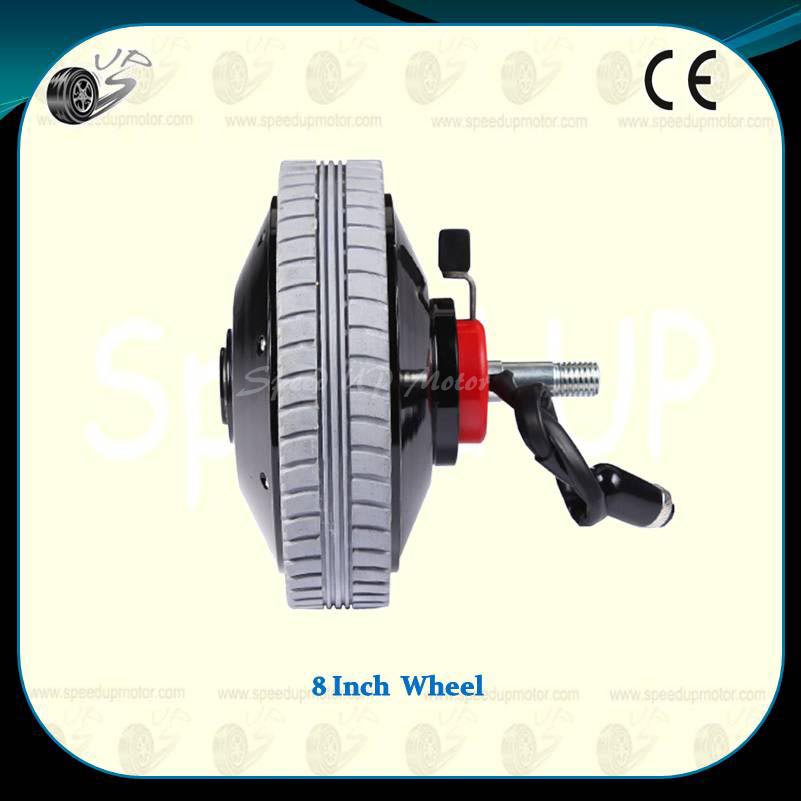

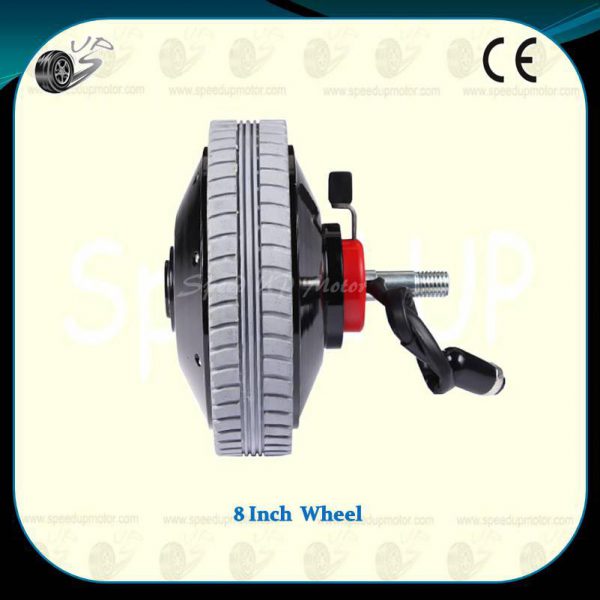

8Inch Powered Wheel with Single Axis/EMB Brake/Hand lever

Most use in Electric Vehicle, Wheelchair/Hospital Bed/ Electric Forklift and So on.

  • Single output Axis ,electromagnetic brake and manual clutch brake.
  • Bigger starting torque, wide speed range.
  • Low speed running and good performance for commutation ability
  • Small volume and high efficiency
  • Rated voltage can be 24V/36V
  • Rated output power can be 180/200/250/300W
  • Rated speed 70/100/130/180rpm or customized

Product Description

Specifications:

Product types:  Brush DC HUB motor
 Model:  1DY-E3
 Rated power:  180W
 Rated voltage:  24V
 Rated speed  95RPM
 Custom made:  Yes
 Diameter:  210mm
 Thickness:  143.6mm
 Output axis  Single

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations
  5. Gear ratio selections

Competitive Advantage:
* Use thin plate-type printed armature winding
* High strength and wear-resistant gear shifting system.

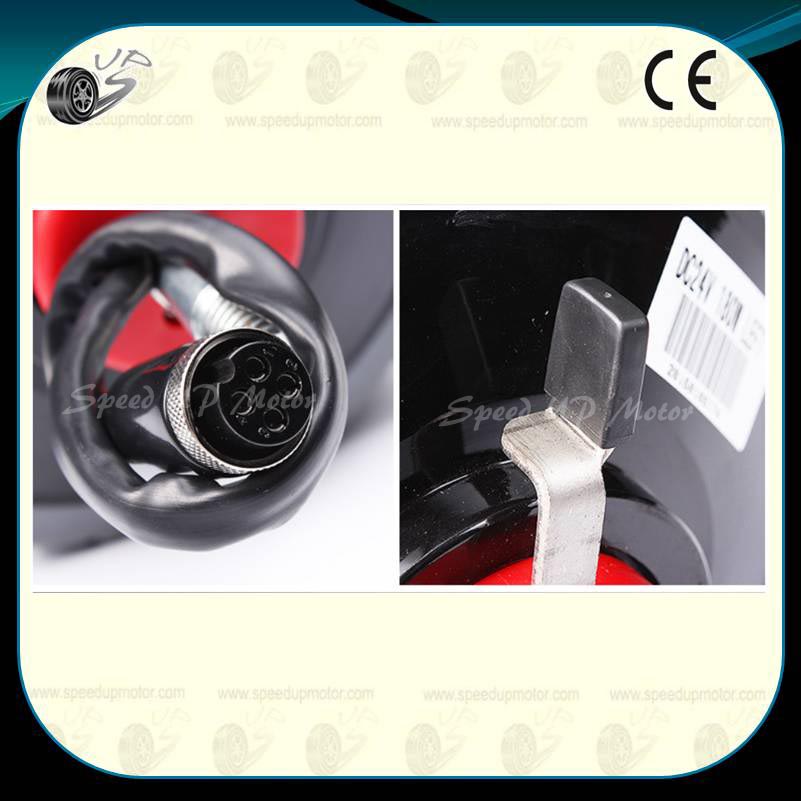

* Built-in brake with electromagnetic clutch,and support manual clutch.
* Bigger starting torque, wide speed range.
* Low speed running and good performance for commutation ability
* Small volume and high efficiency
