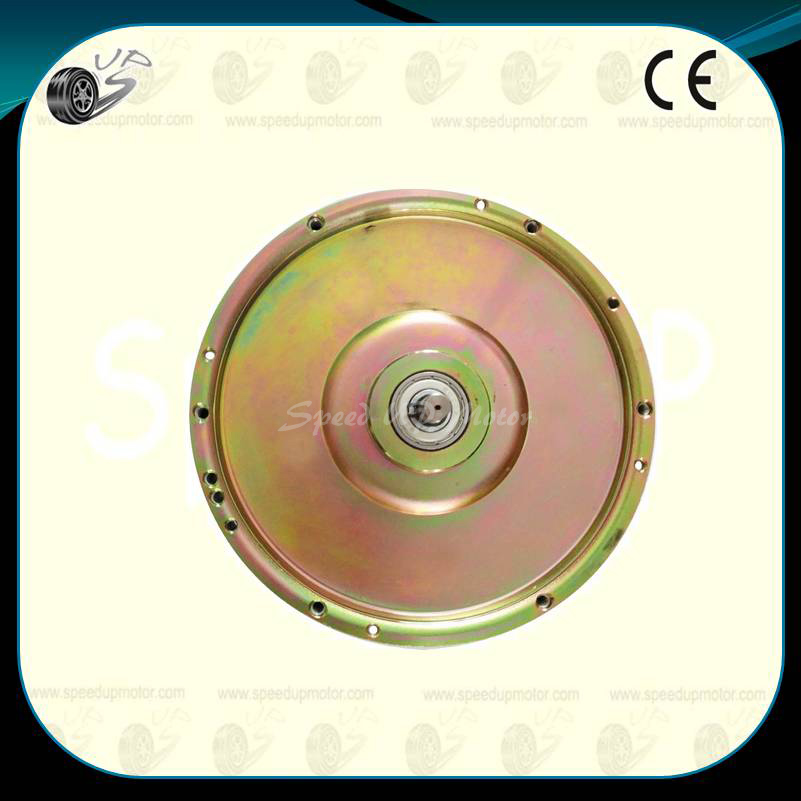

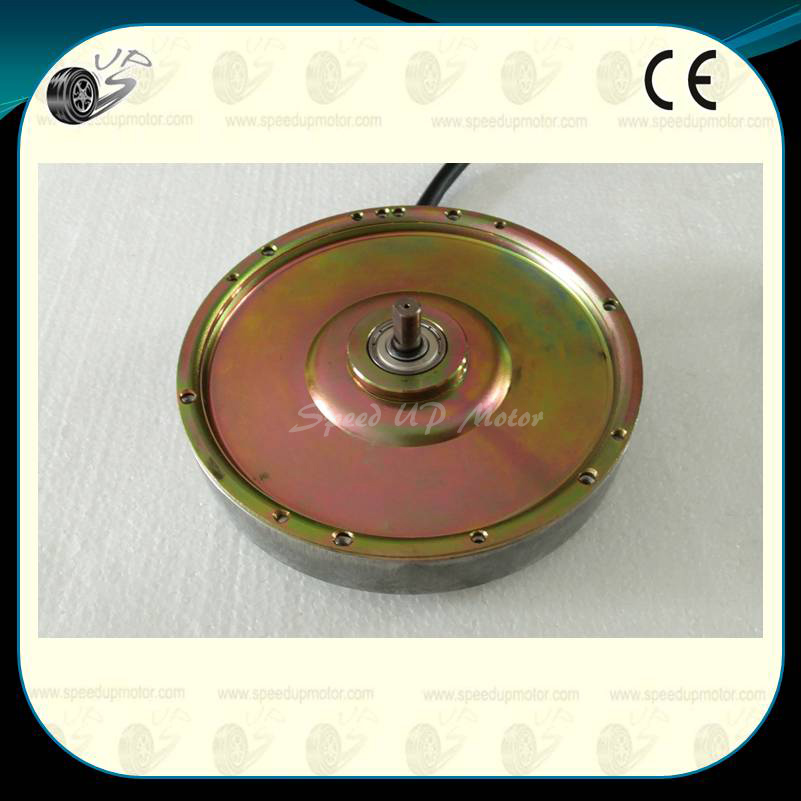

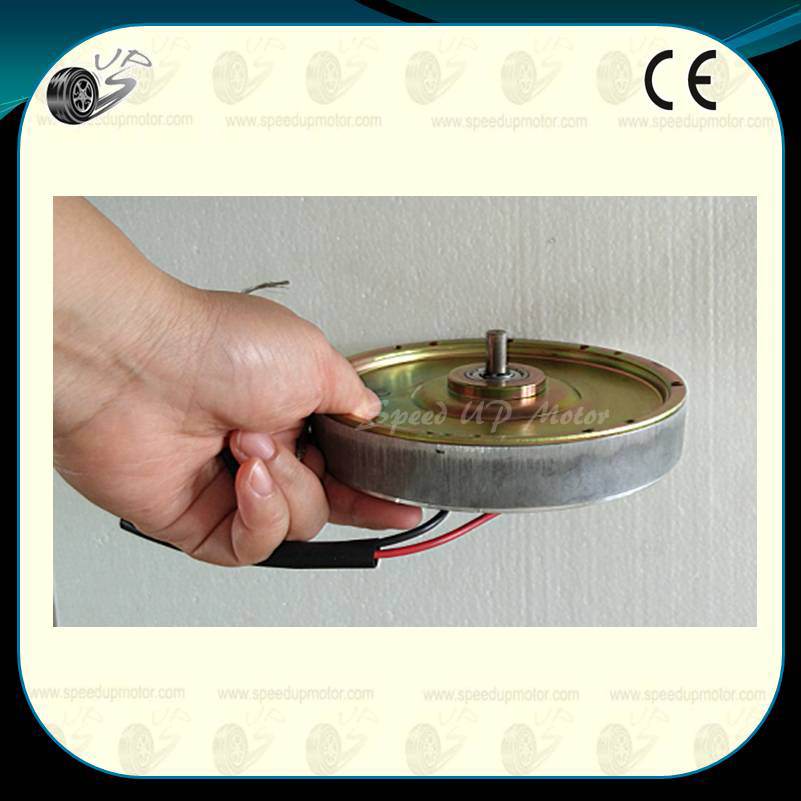

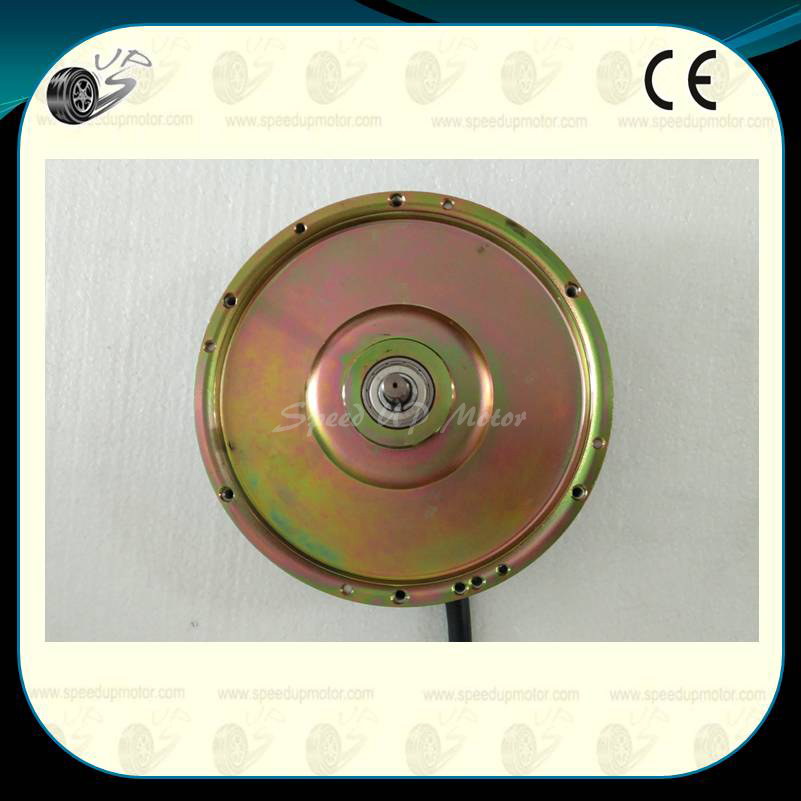

24V250W Flat Printed DC Motor 150SN-A1

24v250w-brush-flat-printed-dc-motor-150sn-a1
24v-electric-machine-dc-motor-brushed24v-electric-brush-print-motors-150sn250w-brushed-printed-motor-for-machine

24V250W, 2600RPM  Printed Armature Motor
151mm Dia   Pancake Flat Motor

Most use in Industrial MachineWashing MachineSpeical Powered Wheel and So on.

  • Flat armature technic
  • Ultra slim profile
  • Long service life of brush
  • Low moment of inertia
  • More uniform torque
  • Have higher overload capacity at moment
  • Direction change of no spare
  • Speedy response
  • Low inductance

Product Description

Specifications:

 Product types:  Printed DC Motor
 Model:  150SN-A1
 Rated power:  250W
 Rated voltage:  24V
 Rated speed:  2600rpm
 Custom made:  Yes
 Diameter:  151mm
 Thickness:  35.5mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Light weight, Small volume.

*Big starting torque, Wide speed range.

*Low speed operation and good reversing performance.

*Well-developed production technology and the introduction of production line
