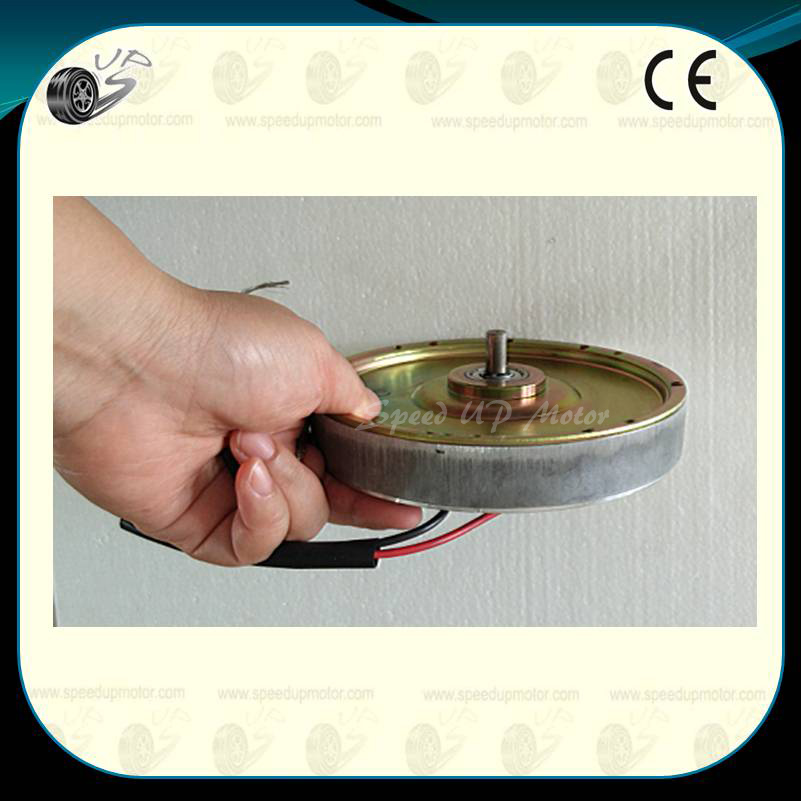

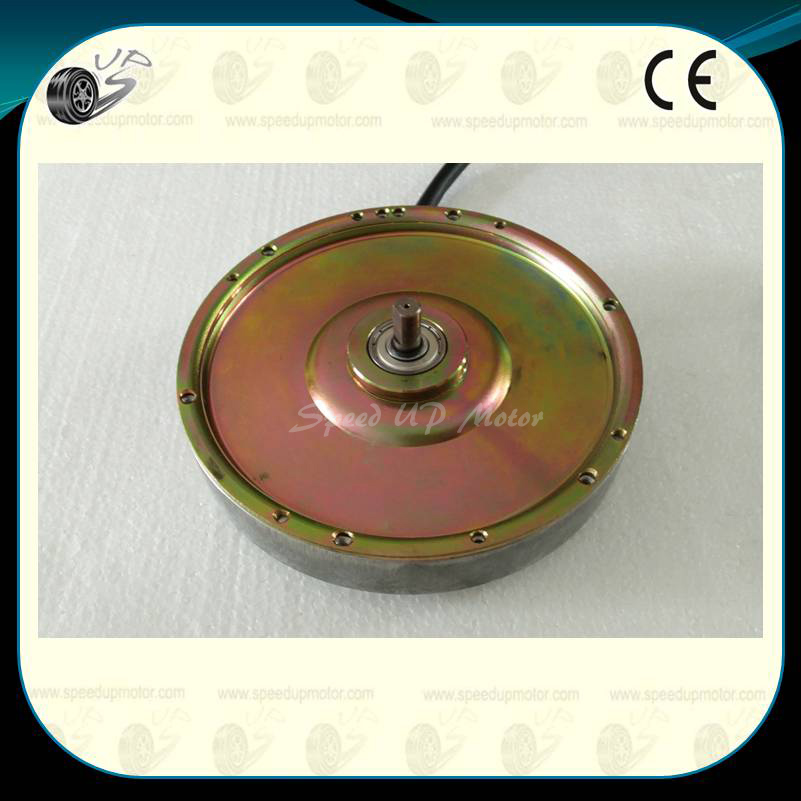

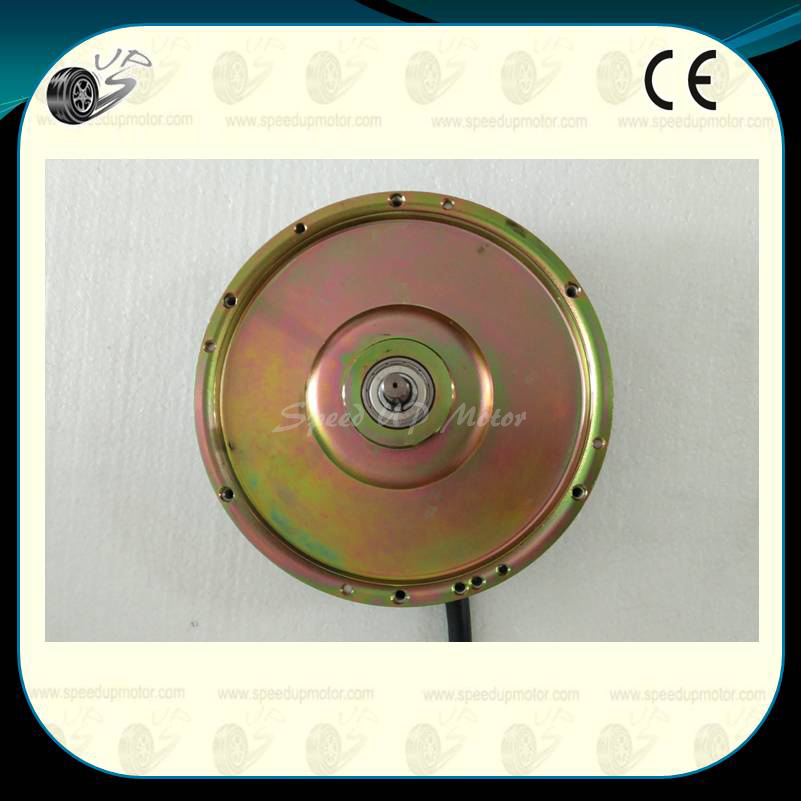

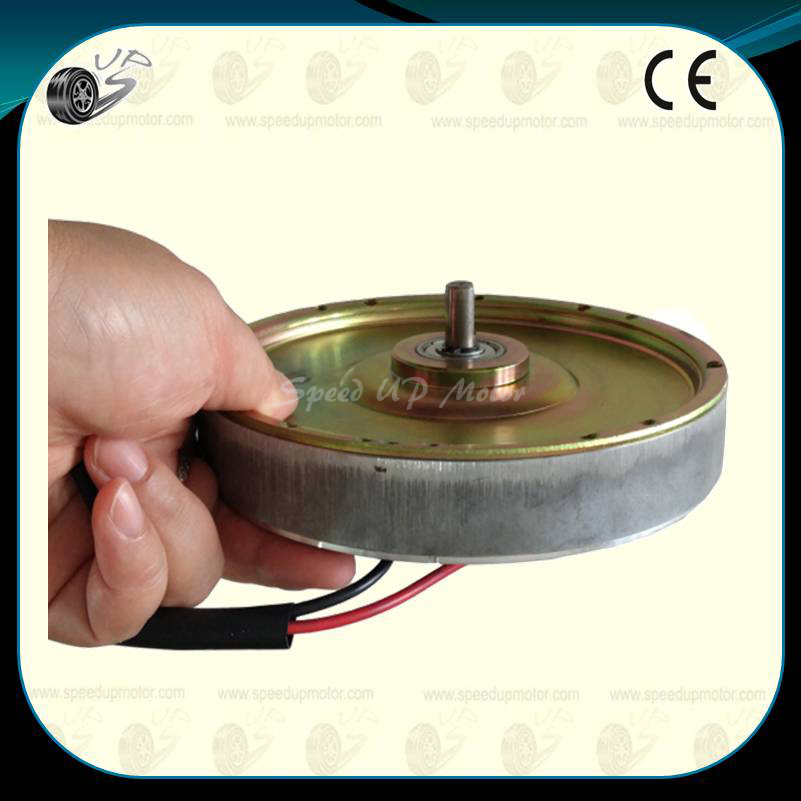

24V250W Flat Brush Pancake Permanent Magent DC Motor 150SN-A1


24V250W, 2600RPM  Printed Armature Motor
151mm Dia   Pancake Flat Motor

Most use in Industrial MachineWashing MachineSpeical Powered Wheel and So on.

  • Light Weight Motor
  • High power volume
  • Wide speed range
  • High linearity
  • Large output torque
  • Stable running

Product Description


 Product types:  Pancake DC Motor
 Model:  150SN-A1
 Rated power:  250W
 Rated voltage:  24V
 Rated speed:  2600rpm
 Custom made:  Yes
 Diameter:  151mm
 Thickness:  35.5mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Light weight, Small volume.

*Big starting torque, Wide speed range.

*Low speed operation and good reversing performance.

*Well-developed production technology and the introduction of production line
