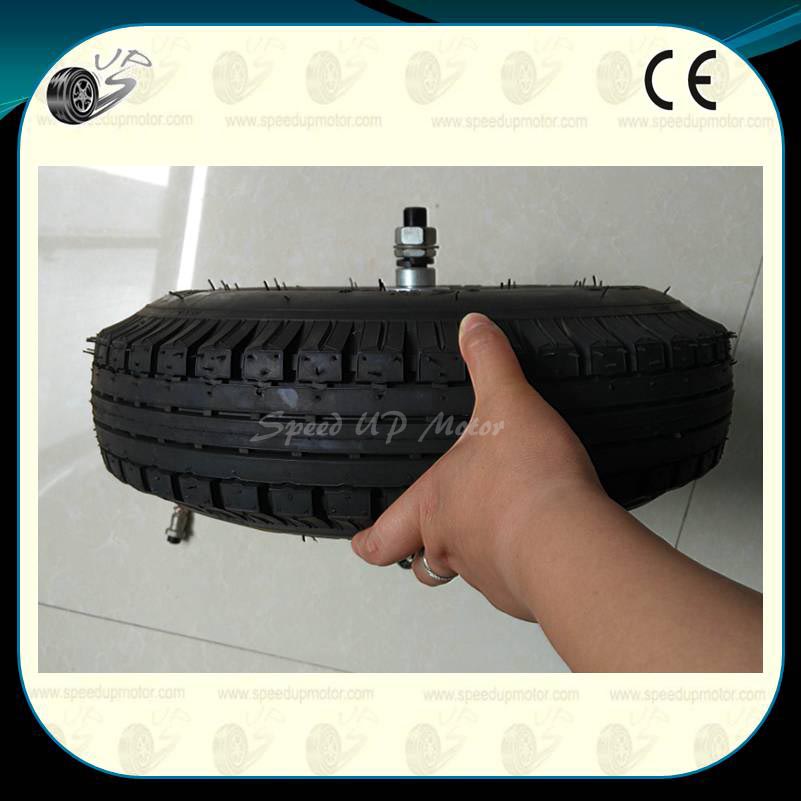

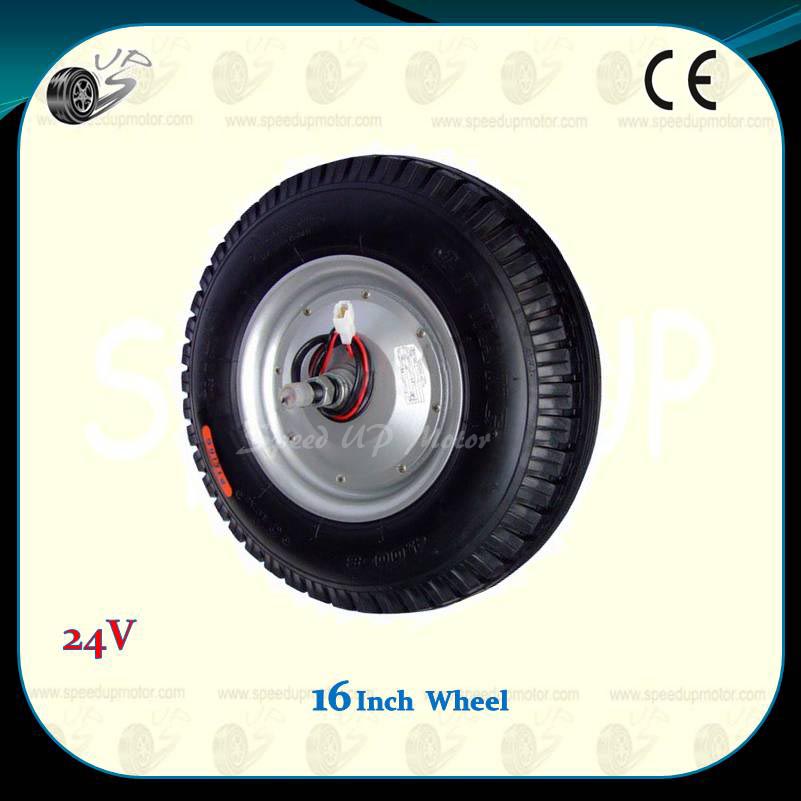

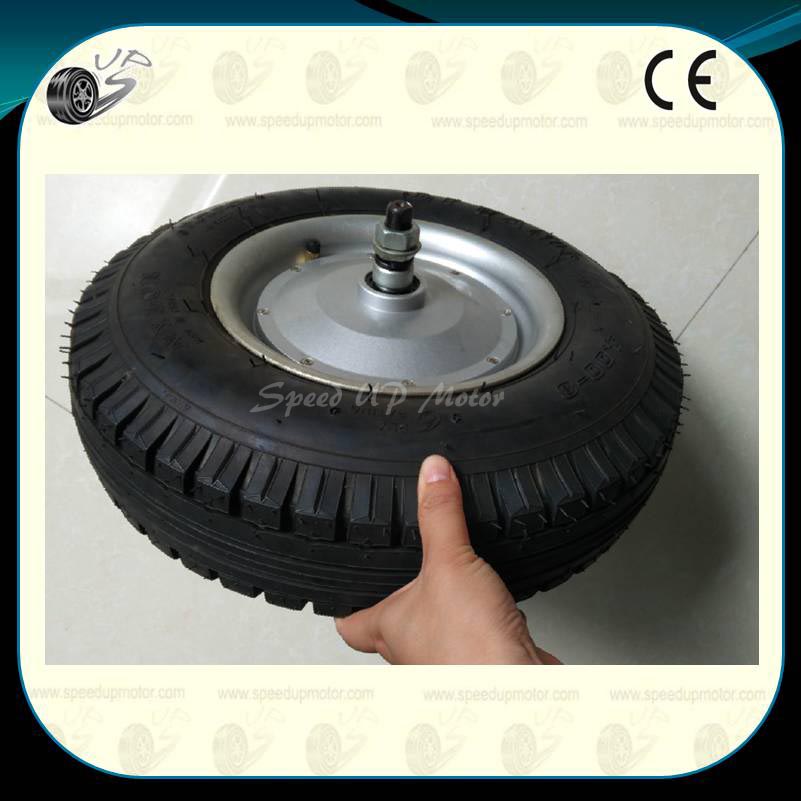

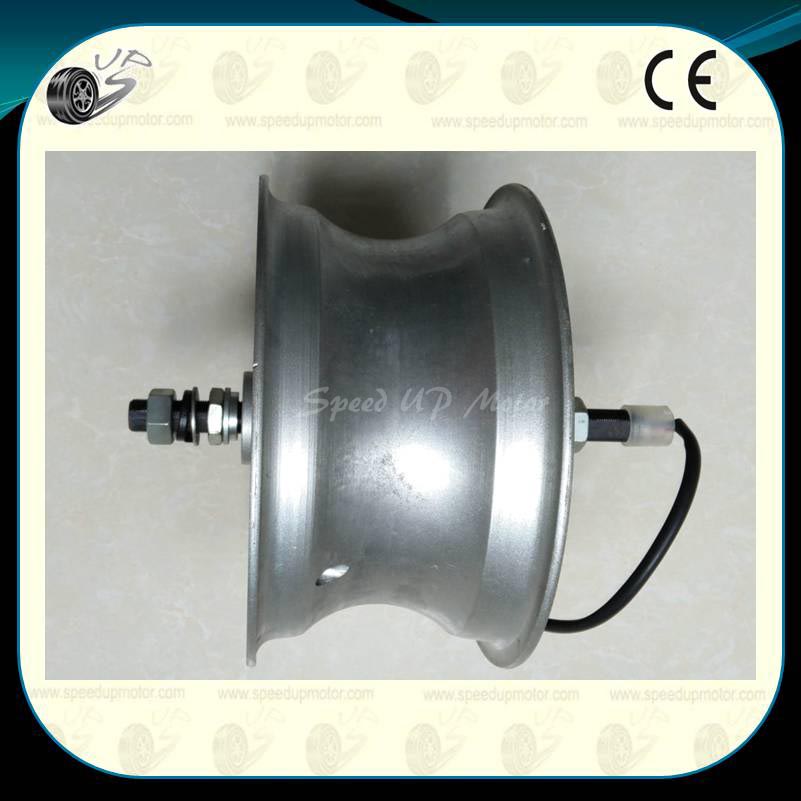

16Inch Powered Wheel With Wide Tire,24V 180W Brush DC Hub Motor,1DY-D2

16inch-powered-wheel-with-wire-tire24v-180w-brush-dc-hub-motor-1dy-d2
wide-hub-motor-brushed-dc-24vbig-tire-wheel-motor-24v16-inch-wheel-hub-motorglof-cart-wheel

24V180W, 105RPM
Wire Tire, Big Wheel Hub
16Inch Powered Wheel with EMB Brake

Most use in Electric Vehicle/Golf Cart/Farm Machineryand So on.

  • Double output Axis and electromagnetic brake
  • Bigger starting torque, wide speed range.
  • Low speed running and good performance for commutation ability
  • Small volume and high efficiency
  • Rated voltage can be 24V/36V
  • Rated output power can be 180/200/250/300W
  • Rated speed 70/100/130/180rpm or customized

Product Description

Specifications:

Product types:  Brush DC HUB motor
 Model:  1DY-D2
 Rated power:  180W
 Rated voltage:  24V
 Rated speed  105RPM
 Custom made:  Yes
 Diameter:  406.4mm
 Thickness:  134mm
 Output axis  Double

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations
  5. Gear ratio selections

Competitive Advantage:
* Use thin plate-type printed armature winding
* High strength and wear-resistant gear shifting system.
* Built-in brake with electromagnetic clutch,and support manual clutch.
* Bigger starting torque, wide speed range.
* Low speed running and good performance for commutation ability
* Small volume and high efficiency

16inch-powered-wheel-with-wire-tire24v-180w-brush-dc-hub-motor1dy-d2-1 16inch-powered-wheel-with-wire-tire24v-180w-brush-dc-hub-motor1dy-d2-2
