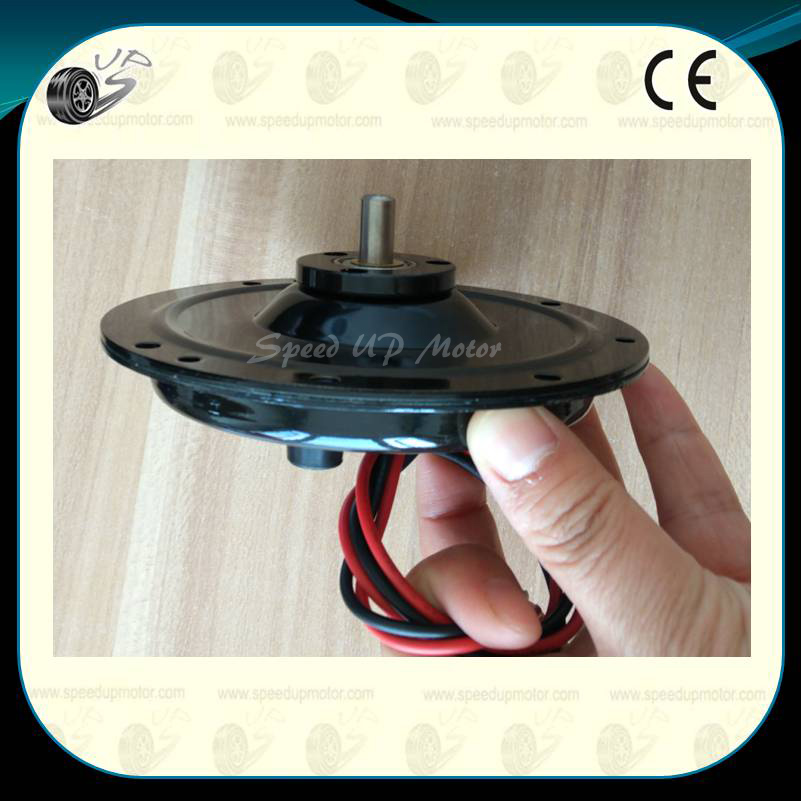

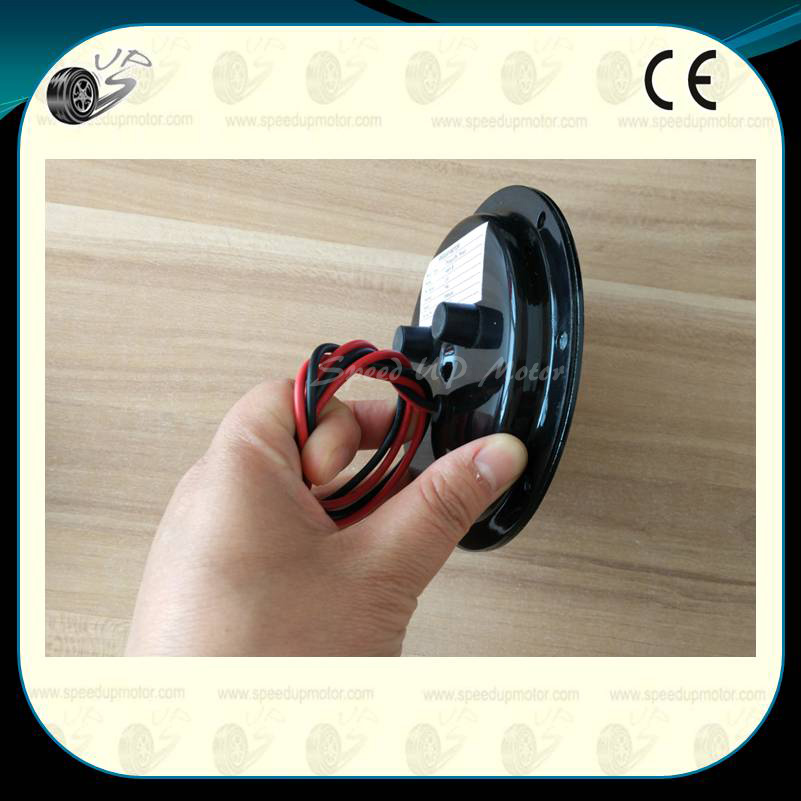

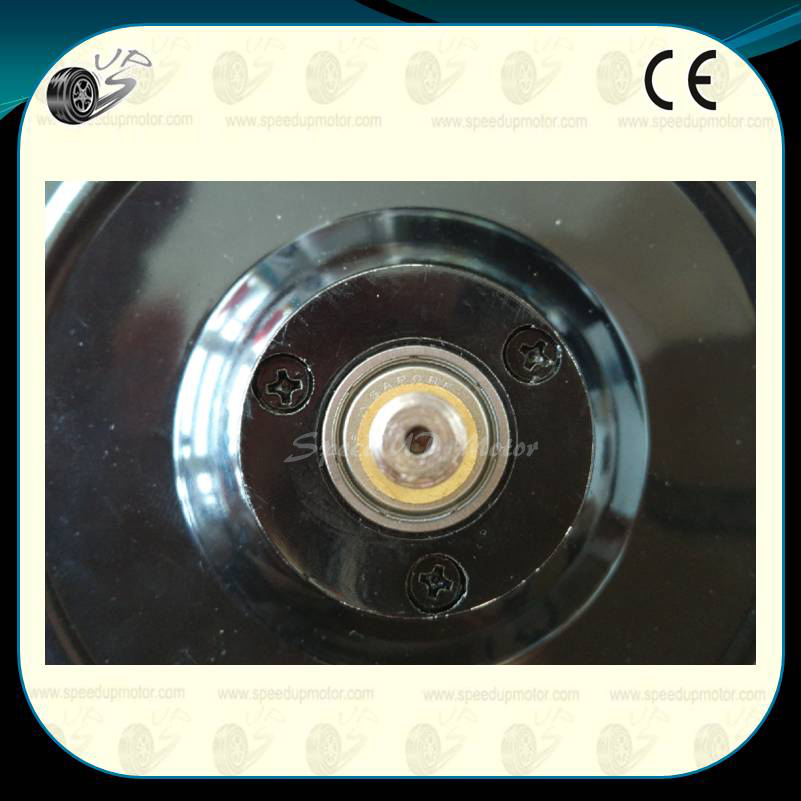

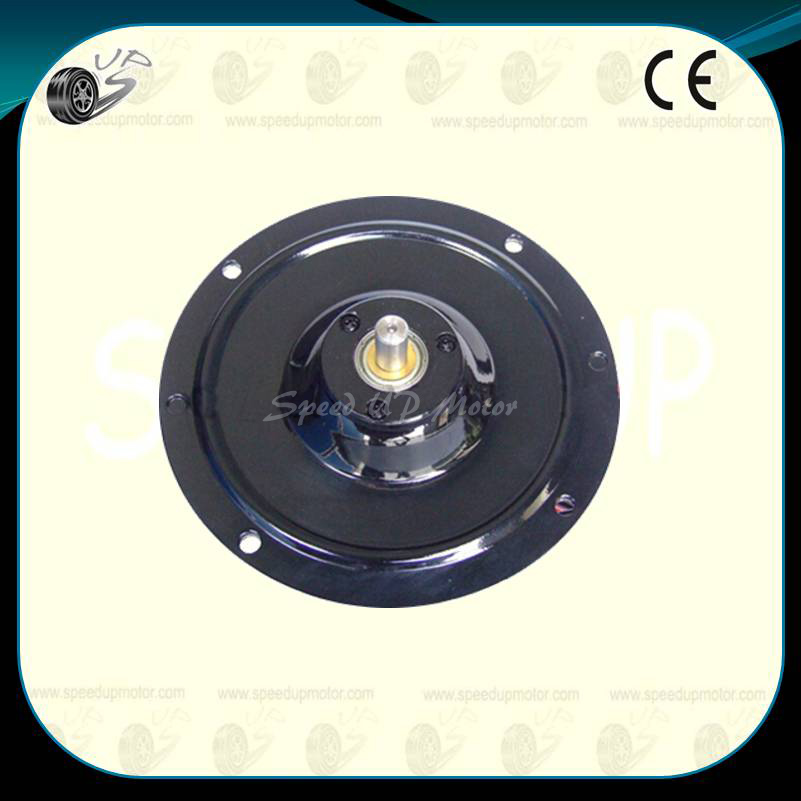

12V65W Thin Plate Disc Motor 90SN-A

12v65w-thin-plate-disc-motor-90sn-a
12v-mini-print-dc-motor12v-electric-door-printed-motor12v-disc-servo-print-motor

12V65W,1850RPM Printed Armature Motor
120mm Diameter Pancake DC Motor

Widely applied in Industrial Machine, Small Household Electrical Appliances and So On.
• Power to volume ratio
• Wide speed range
• High linearity
• Small moment of inertia
• Large output torque
• Smooth operation of the advantages.

Product Description

Specifications:

Product types: Printed DC motor
Model: 90SN-A
Rated power: 65W
Rated voltage: 12V
Rated speed: 1850rpm
Custom made: Yes
Diameter: 120mm
Axis leigth: 15.2mm
Thickness: 30.3mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations
  5. Gear ratio selections

Competitive Advantage:

*Light weight, small volume.

*Big starting torque, wide speed range.

*Low speed operation and good reversing performance.

*Well-developed production technology and the introduction of production line

12v65w-thin-plate-disc-motor-90sn-a-2 12v65w-thin-plate-disc-motor-90sn-a-1
