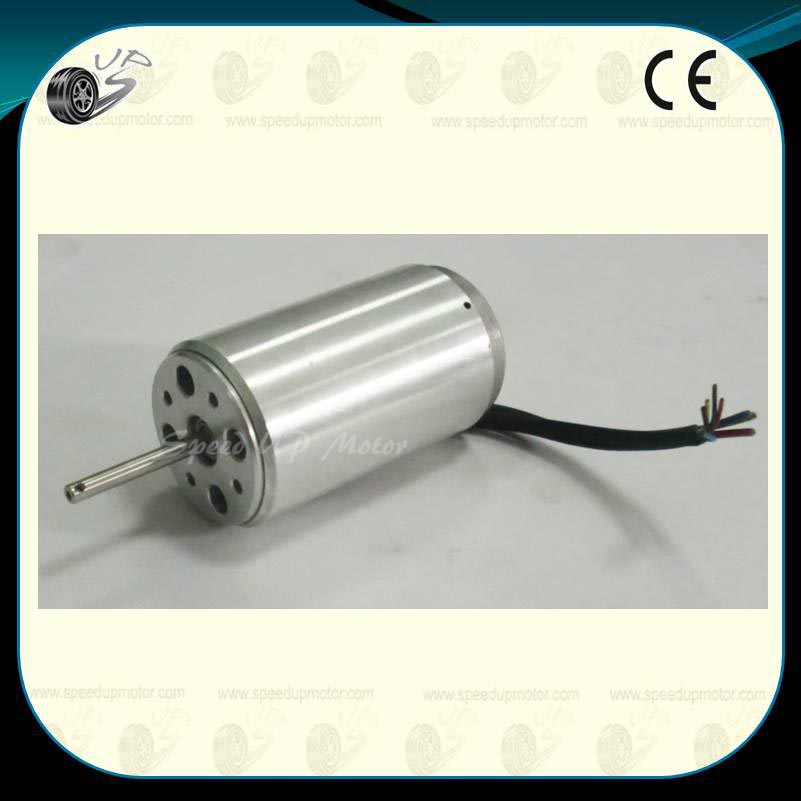

24V 180W 3500rpm, BLDC Motor
Mini Cute Brushless Drive DC Motor
Light Weight and Large Output
Most use in Industrial Machine, Robot and So on.
Also can be 28V180W
Product Description
Specifications:
| Product types: | BLDC motor |
| Model: | 2DY-FA |
| Rated power: | 180W |
| Rated voltage: | 28 (V) |
| Rated speed | 3500RPM |
| Custom made: | Yes |

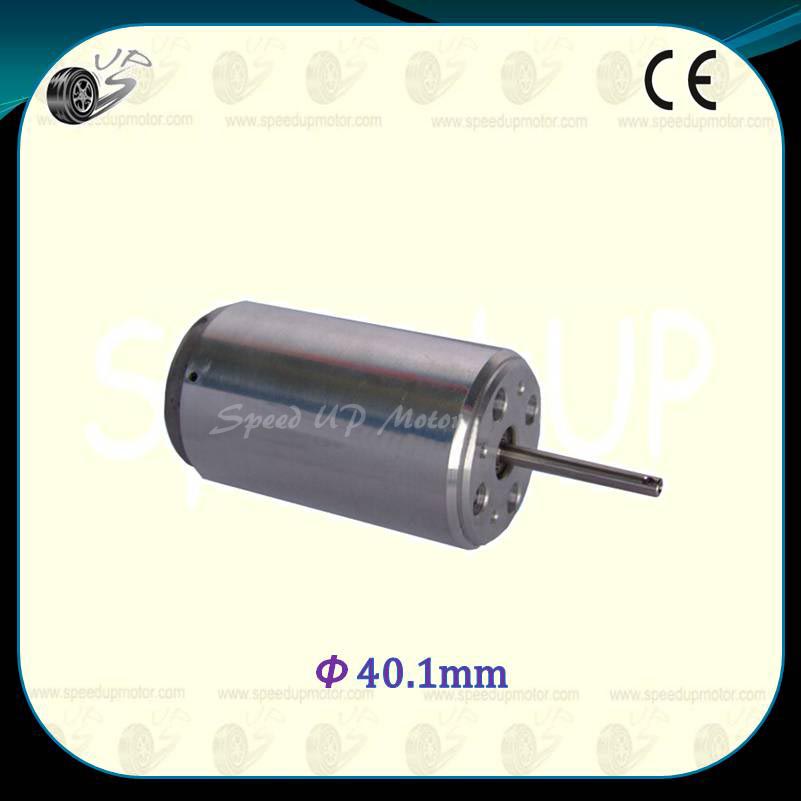

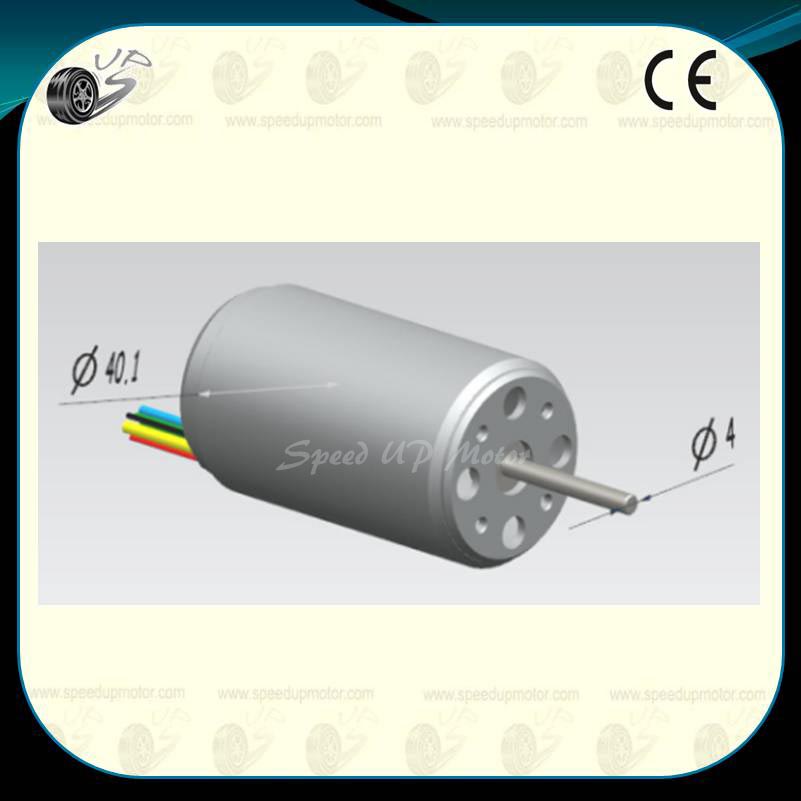

| Diameter: | 40.1mm |
| Diameter for axis | 4mm |

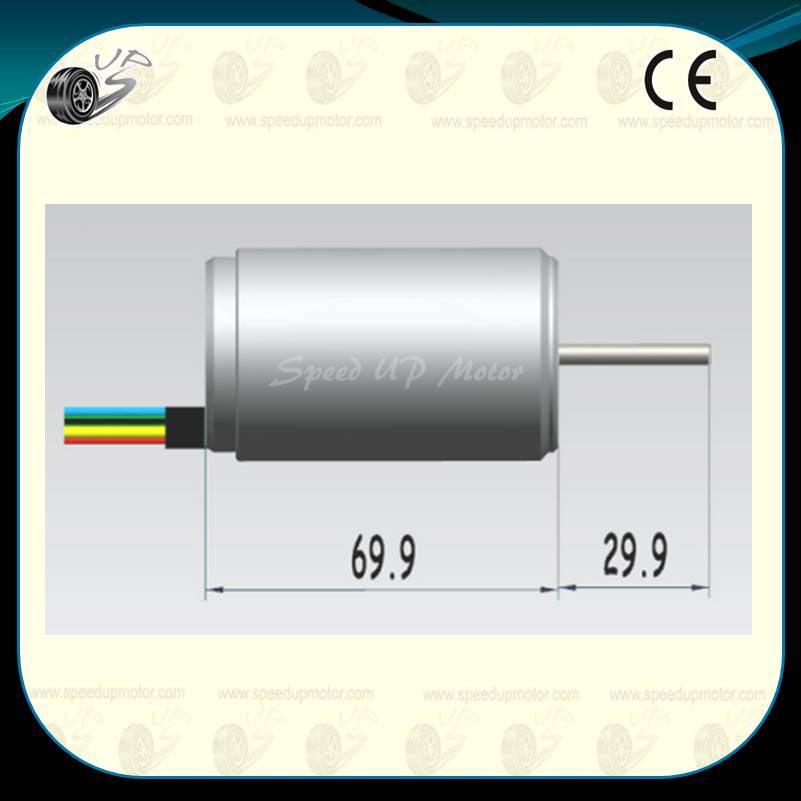

| Motor length | 69.9mm |
| Output axis length | 29.9mm |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis) sizes/profiles
- Tailored performance profiles
- Special OEM configurations
Competitive Advantage:
*Low speed high power operation, can save the reducer directly drive big load;
*Soft start soft stop, brake performance is good, can save the original mechanical brake or electromagnetic braking device
*High efficiency, no excitation loss of the motor itself and carbon brush loss, eliminating the multilevel reduction consumption, comprehensive energy saving rate can reach 20%~60%
*High reliability, good stability, strong adaptability, simple repair and maintenance;
*Bump resistance vibration, low noise, small vibration, smooth operation, long service life;
*No spark, especially suitable for the places with explosive, explosion proof type;
