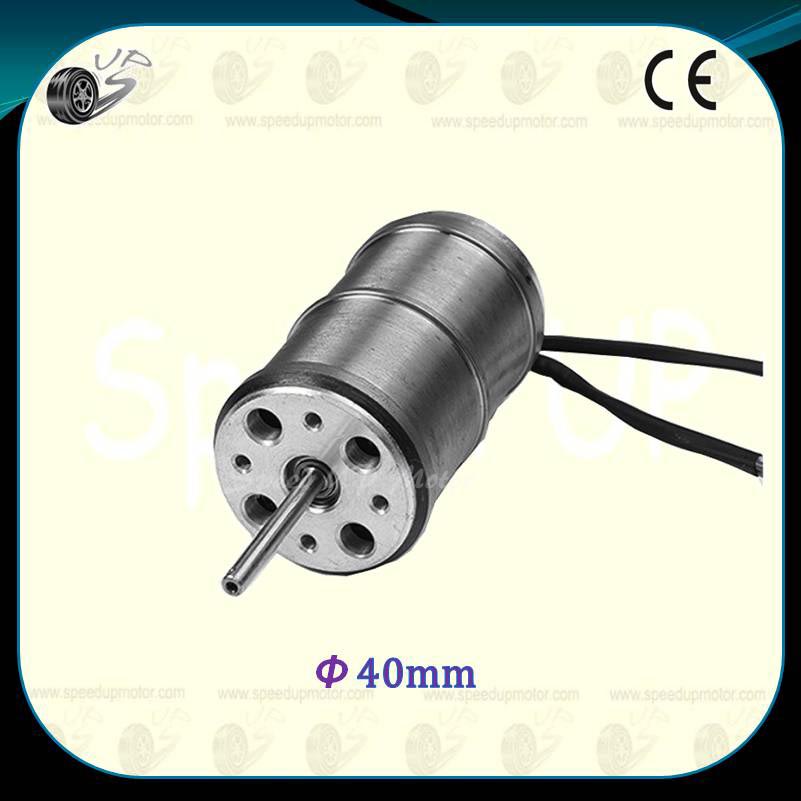

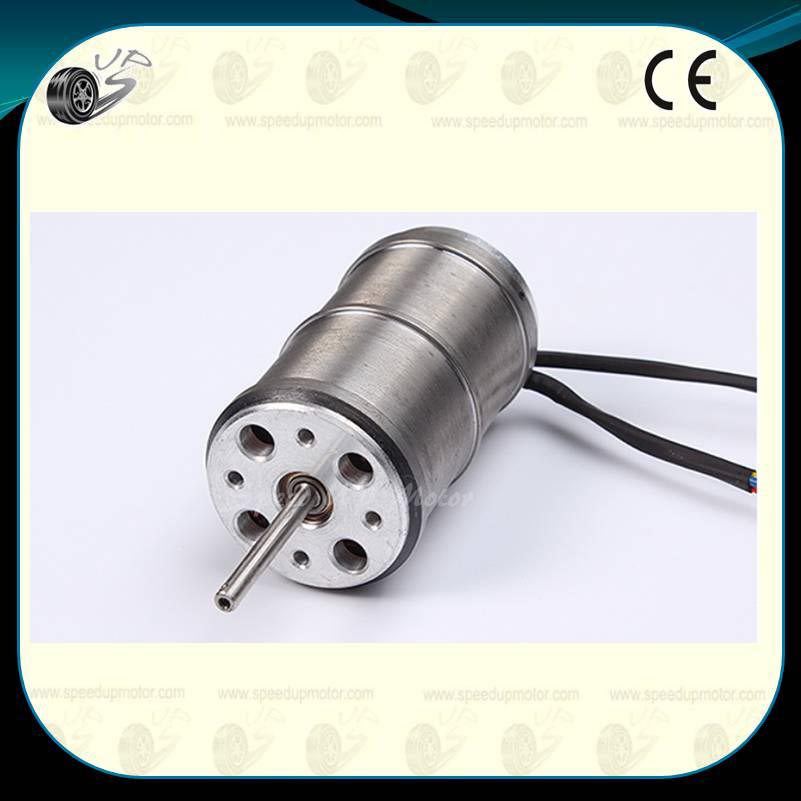

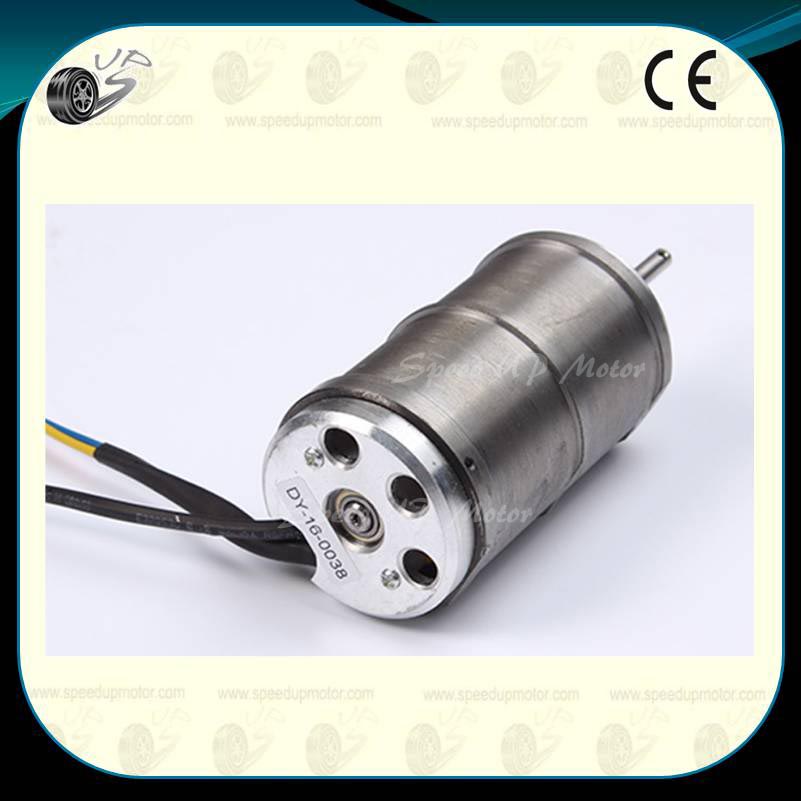

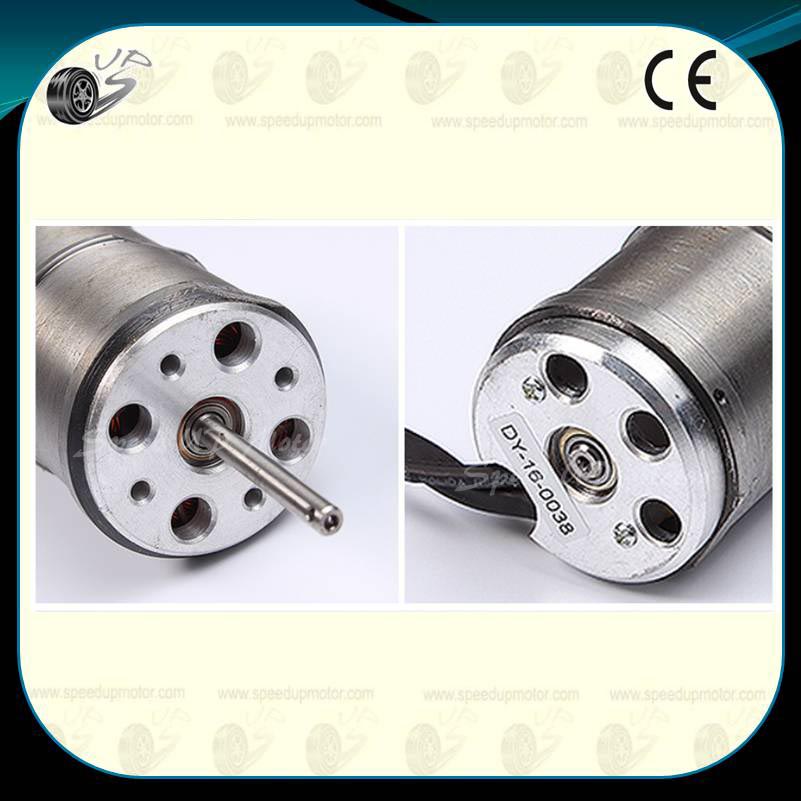

Aluminum Shell Brushless Motor,Mini BLDC Motor,2DY-F2

aluminum-shell-brushless-motormini-bldc-motor2dy-f2
small-size-bldc-motor-28v-180wcute-bldc-motor-28valuminum-cover-bldc-motor-mini-size

28V 180W BLDC Motor
Mini Cute Motor, 40mm Dia
Light Weight and Large Output

Most use in Industrial Machine, Robot and So on.
Also can be 24V180W

Product Description

Specifications:

 Product types: BLDC motor
 Model:  2DY-F2
 Rated power:  180W
 Rated voltage:  28 (V)
 Rated speed  4300RPM
 Custom made:  Yes
 Diameter:  40.1mm
 Diameter for axis  4mm
 Motor length  69.9mm
 Output axis length  29.9mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Low speed high power operation, can save the reducer directly drive big load;

*Soft start soft stop, brake performance is good, can save the original mechanical brake or electromagnetic braking device

*High efficiency, no excitation loss of the motor itself and carbon brush loss, eliminating the multilevel reduction consumption, comprehensive energy saving rate can reach 20%~60%

*High reliability, good stability, strong adaptability, simple repair and maintenance;

*Bump resistance vibration, low noise, small vibration, smooth operation, long service life;

*No spark, especially suitable for the places with explosive, explosion proof type;aluminum-shell-brushless-motormini-bldc-motor2dy-f2-1 aluminum-shell-brushless-motormini-bldc-motor2dy-f2-2
