82mm Dia Mini Hub Motor,Brushless Gearless DC Motor,60H03

82mm-dia-mini-hub-motorbrushless-gearless-dc-motor60h03
single-axiscute-brushless-hub-motorbrushless-hub-dc-motor-with-detachable-pu-tire82mm-dia-detachable-pu-tire-motorbrushless

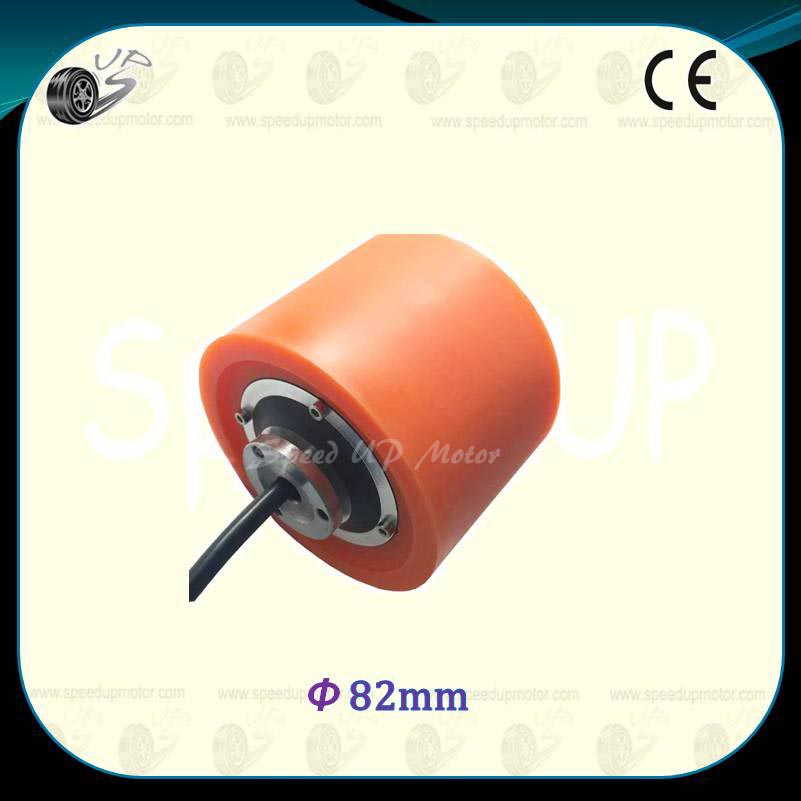

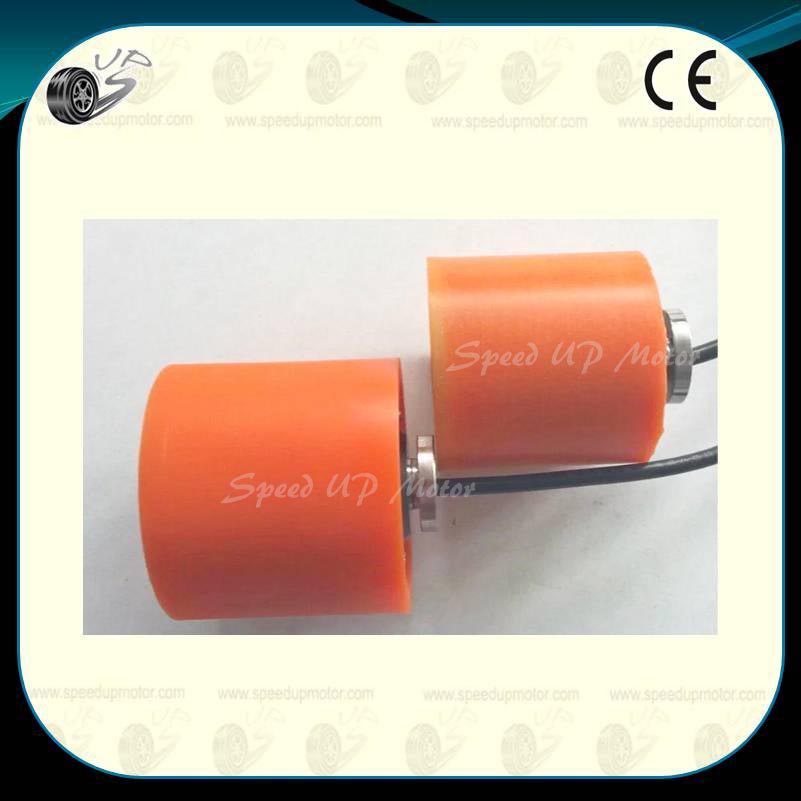

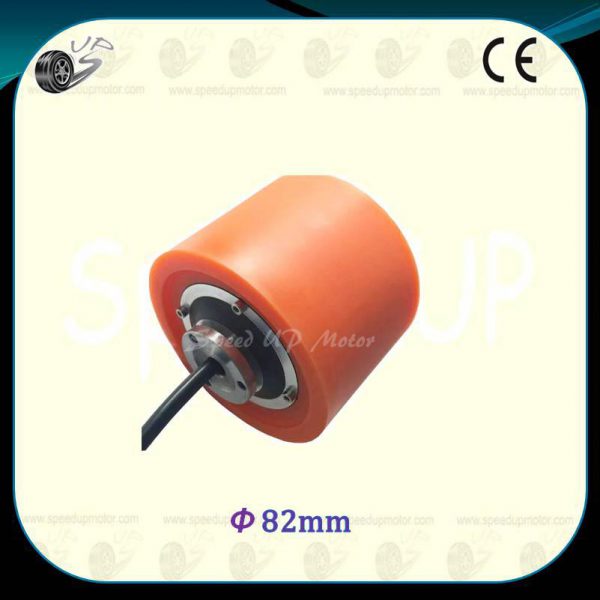

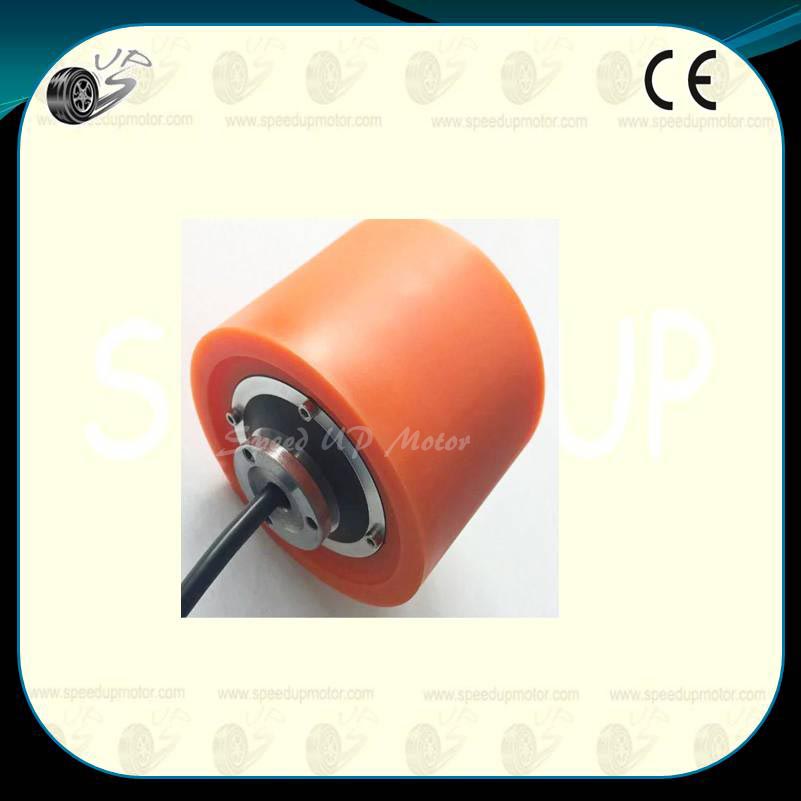

Dia 82mm Hub Motor With Detachable PU Tire
24/36/48V     100-200W
Brushless Gearless DC with Single Shaft/Axis

Most use in Suit Case/Luggage Carrier /Electric Scooter/Industry Machine and So on.

Product Description

Specifications:

Voltage:  24V/36V/48V
Power:  100W-200W
Motor Type:  Brushless Gearless Hub Motor
Motor Net Weight:  0.7kgs
Motor Diameter:  70mm(include tire)
Tire wide:  52mm
No load Speed:  24V900rpm(0.35A) 36V1350rpm(0.38A)  48V1850rpm(0.42A)
Rated speed  700-1800rpm
Rated Torque:  3-5NM
Cable Length:  20-50cm
Shaft dia:  M17
Corresponding Controller:  24/36/48V small power Controller
Hall Sensor Quantity:  3pcs

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations82mm-dia-mini-hub-motorbrushless-gearless-dc-motor60h03-1 82mm-dia-mini-hub-motorbrushless-gearless-dc-motor60h03-2
