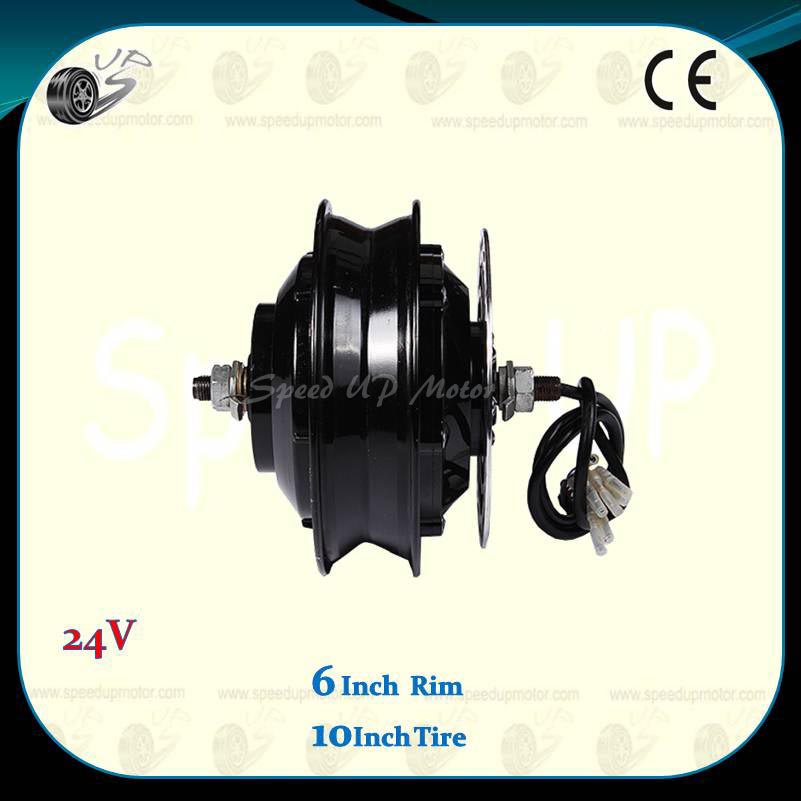

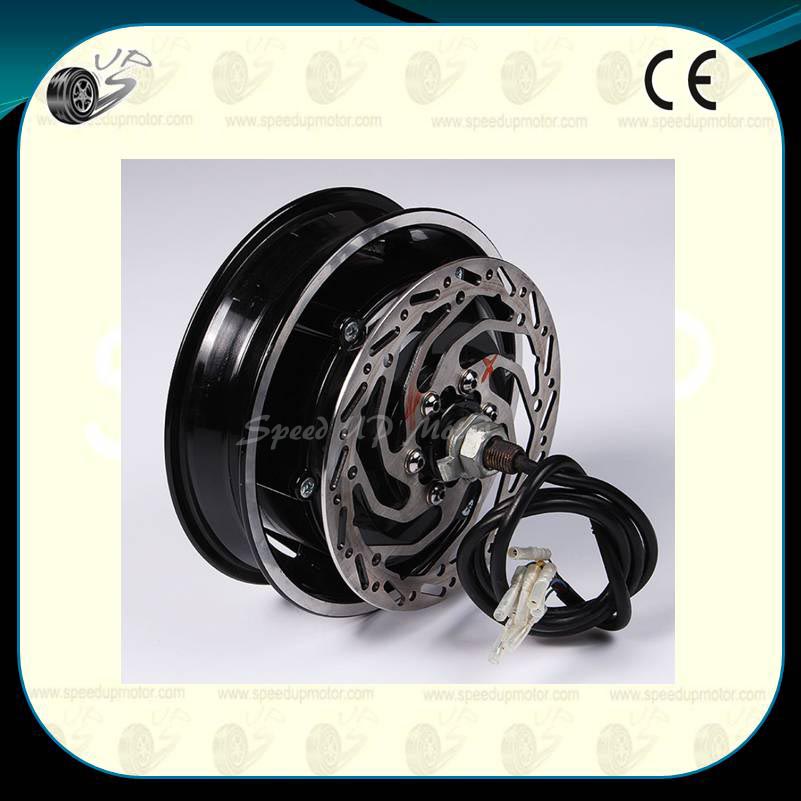

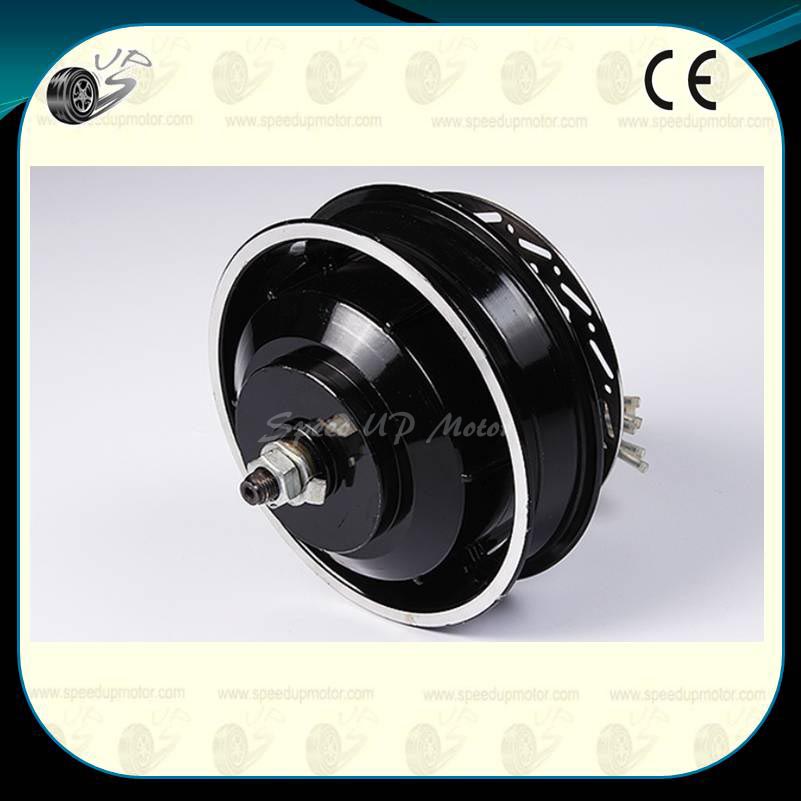

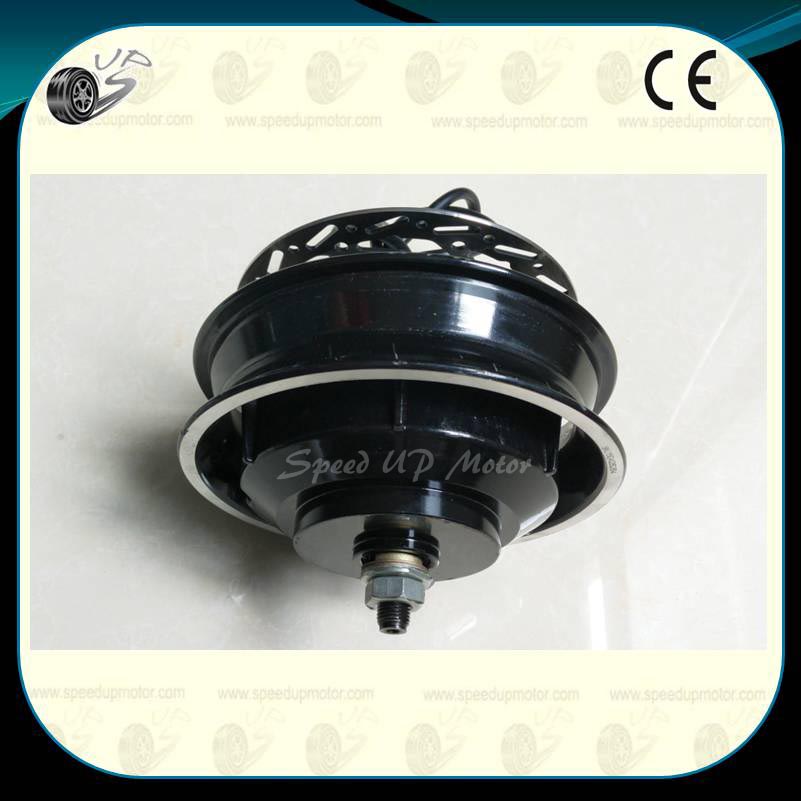

6 Inch Wheel 24V 300W Brushless Gearless DC Hub Motor, 2DY-A


24V300W, 500RPM
6Inch Alloy Rim
Brushless Gearless Wheel Hub DC Motor

Most use in Electric Vehicle/Electric Scooter and So on.
Also can be with 36V450W

Product Description


Voltage:  24V
Power:  300W
Motor Type:  Brushless Gearless Hub Motor
Net Weight:  3kgs (include tire)
Motor Diameter:  6Inch
Motor shaft diameter:  M14
Motor shaft length:  Customized
Motor cable length:  50-120cm
Hall Sensor Quantity:  Option
Rated Speed:  25±1km/h
rated efficiency:  >=80
Brake:  Disc Brake
   V Brake for option
Fork Width Requirement:  100-130mm
Corresponding Controller:  24V300W Controller

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations6-inch-wheel-24v-300w-brushless-gearless-dc-hub-motor-2dy-a-26-inch-wheel-24v-300w-brushless-gearless-dc-hub-motor-2dy-a-1
