24V Electric Wheelchair Foldable Alloy Frame,Low Speed Wheelchair With Electromagnetic Brake 12Inch Wheelchair

幻灯片1
幻灯片2幻灯片3幻灯片4

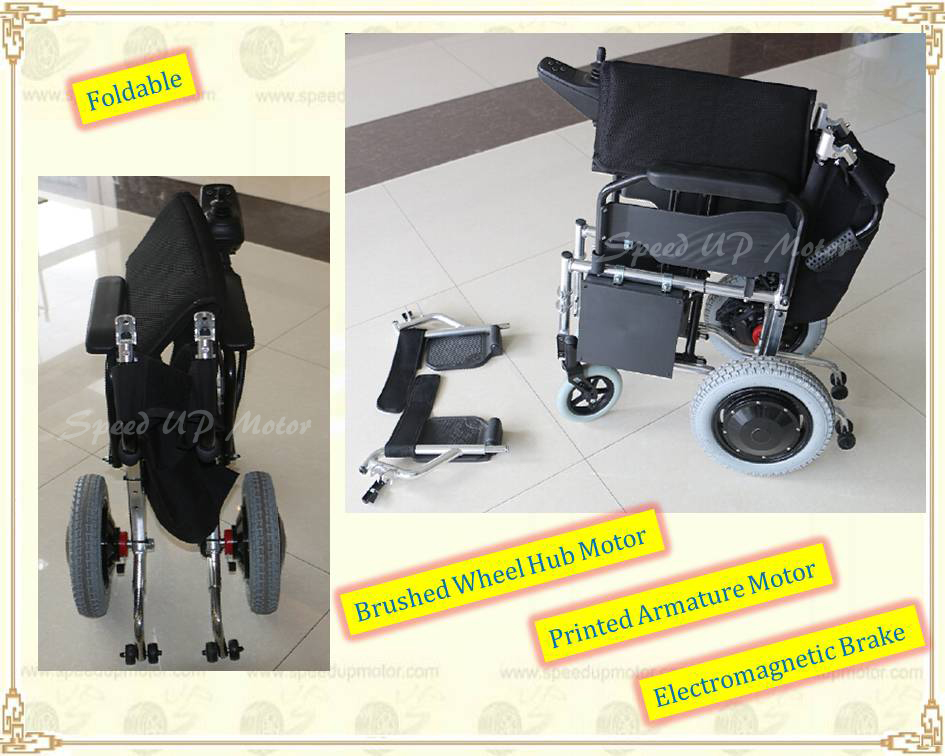

*Foldable type can save storage space, convenient transportation.

*Automatic smart brake,safe for the users.

*Intelligent control variable speed freely, and can place 360 degrees rotation.

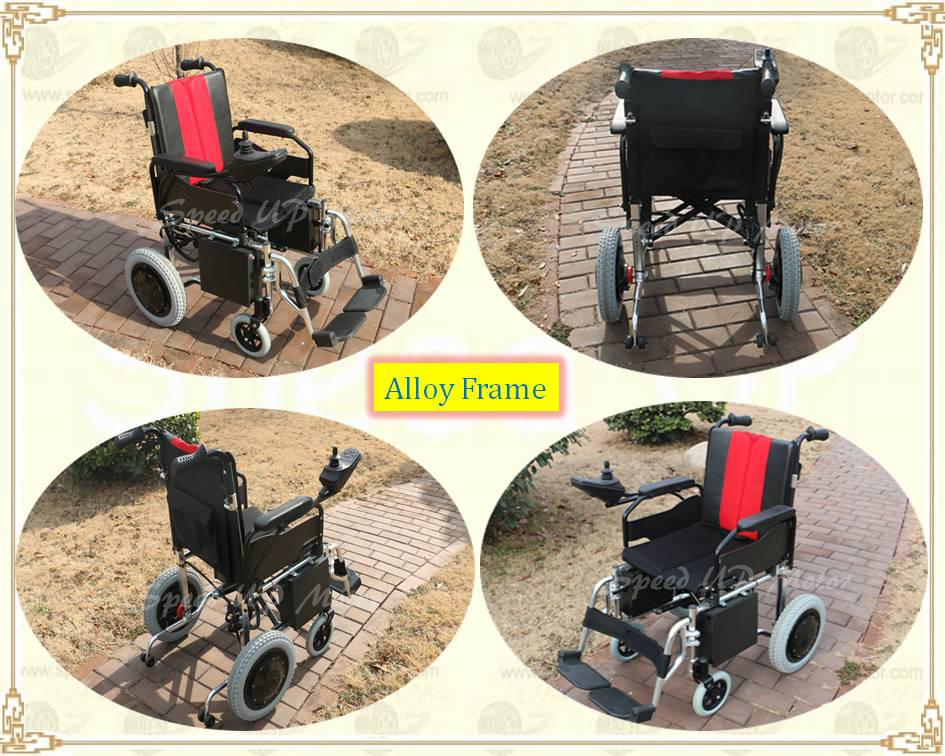

*Aviation aluminum frame, light and strong.

*Joystick intelligent controller can fit from one side to the other interchangeable.

*Low noise, high effciency and low energy consumption wheel hub motor(60% reduction) can cover longer distance with equal power level.

* safety belt、 the anti-bump pedal and anti back tipping device are more humanized design.

*Adjustable and removable PU handrails , suitable for all kinds body of people using.

* Front and rear free pneumatic PU tire. Anti prick explosion-proof, economic and durable.

Product Description



Product types:  Electric wheelchair
 Model:  EW-18A
 Dimensions  1150 x 700 x 930 mm
 Spread of axles  312 mm
 Wheelbase  535 mm
 Ground clearance  85 mm
 Minimum turning radius  1.2m
 Net weight  47 kg
 Maximum loading  120 kg
 Front wheels  7.5 inch
 Rear wheels  12 inch
 Motor voltage DC  24V(2*12V wheel hub motor)
 Motor power  180W
 Battery  (12V 20Ah)×2
 Charging input voltage AC V  AC110V / AC220V
 Charging output voltage DC  27.2V
 Drive range  ≥20km
 Maximum speed  ≤6km/h
 Braking performance  ≤1.5m
 In the Po ability
 Power consumptionkw.H/100km  ≤6
 Climbing ability  ≥
 Longitudinal stability  20°
 Lateral stability  15°
 Obstacle height  ≥40mm
 Obstacle width  100mm
