24inch Manual/Electric Wheelchair With Wheel Hub Motor Medical Equipment Power Folding Portable Electric Lightweight Wheelchair

幻灯片5
幻灯片6幻灯片7幻灯片8

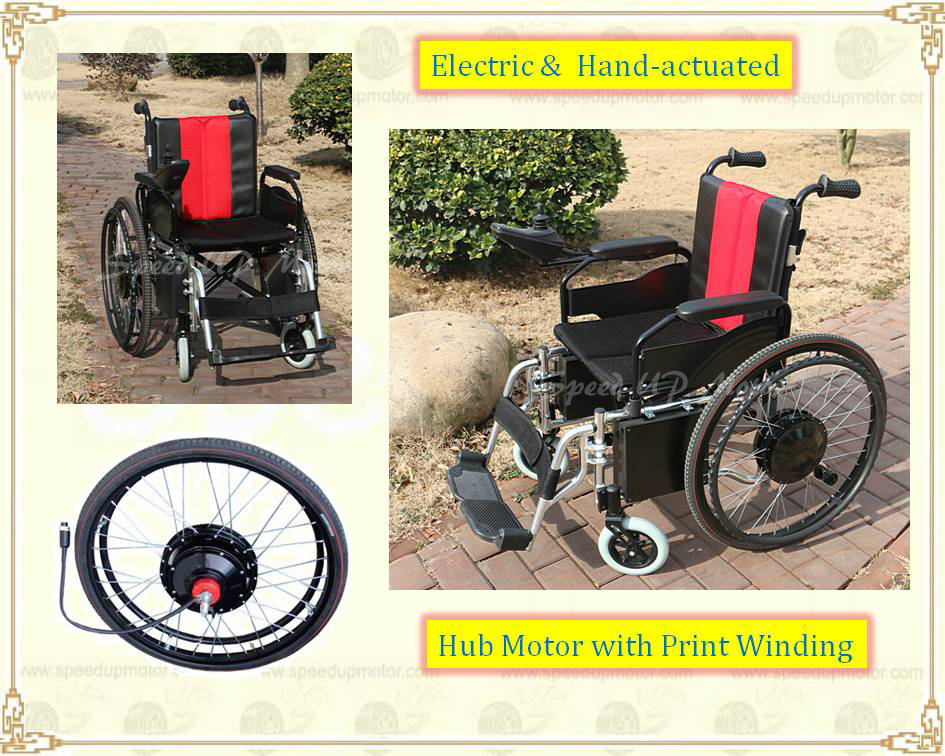

                  Electirc and hand-actuated wheelchair

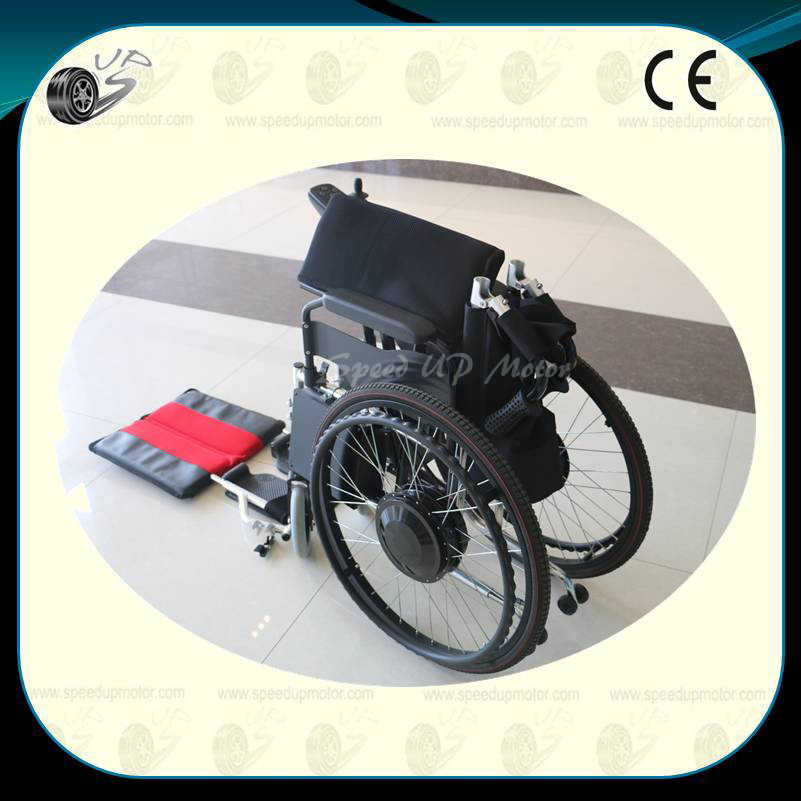

*Foldable and with Hub type intelligent drive motor

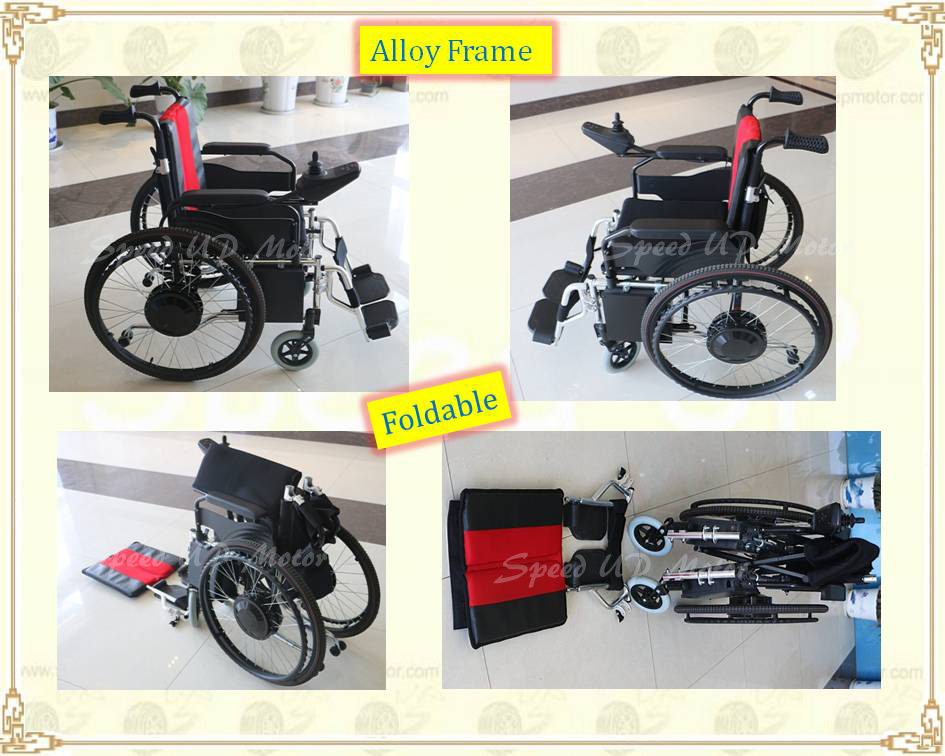

*Aviation aluminum frame
*Automatic smart brake
*Smart gear shift control system
*Smart joystick controller
*With safety belt and the anti-bump pedal
*Free pneumatic PU tire

Product Description

Product types:  Electric wheelchair
 Model:  EW-18D
 Dimensions  1150 x 700 x 930 mm
 Spread of axles  312 mm
 Wheelbase  535 mm
 Ground clearance  85 mm
 Minimum turning radius  1.2m
 Net weight  47 kg
 Maximum loading  120 kg
 Front wheels  7.5 inch
 Rear wheels  24 inch
 Motor voltage DC  24V(2*12V wheel hub motor)
 Motor power  180W
 Battery  (12V 20Ah)×2
 Charging input voltage AC V  AC110V / AC220V
 Charging output voltage DC  27.2V
 Drive range  ≥20km
 Maximum speed  ≤6km/h
 Braking performance  ≤1.5m
 In the Po ability
 Power consumptionkw.H/100km  ≤6
 Climbing ability  ≥
 Longitudinal stability  20°
 Lateral stability  15°
 Obstacle height  ≥40mm
 Obstacle width  100mm
