24V 120W Stotless Brushless Permanent Magnet DC Motor,2DY-F1

24v-120w-stotless-brushless-permanent-magnet-dc-motor2dy-f1
high-speed-mini-size-dc-motor24v-bldc-motor-mini-size

24V 120W 2800rpm,  BLDC Motor
Mini Cute Brushless Drive DC Motor
Light Weight and Large Output

Most use in Industrial Machine, Robot and So on.

Product Description

Specifications:

 Product types: BLDC motor
 Model:  2DY-F1
 Rated power:  120W
 Rated voltage:  24 (V)
 Rated speed  2800RPM
 Custom made:  Yes

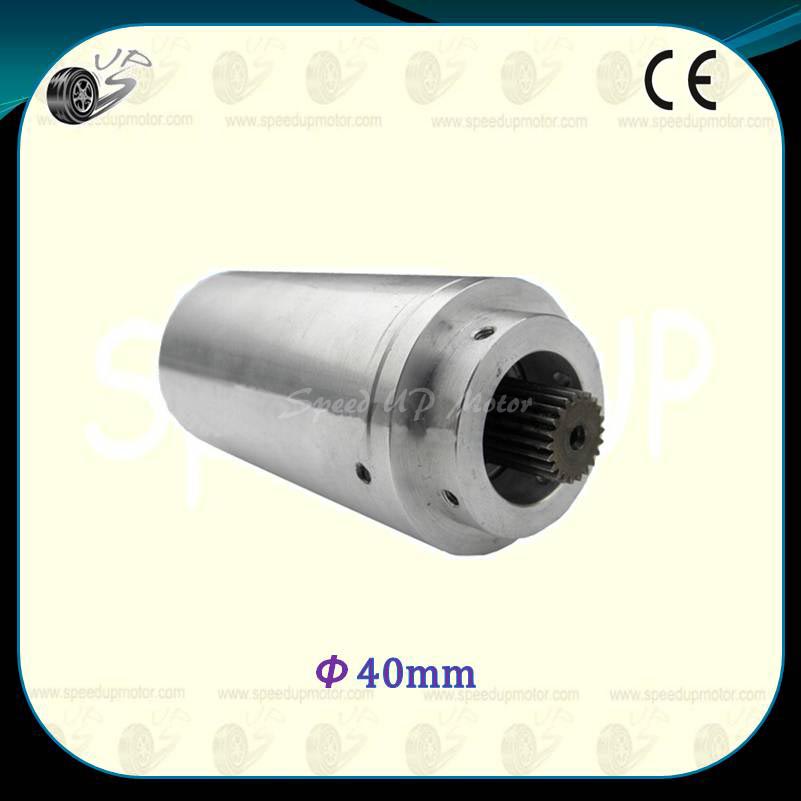

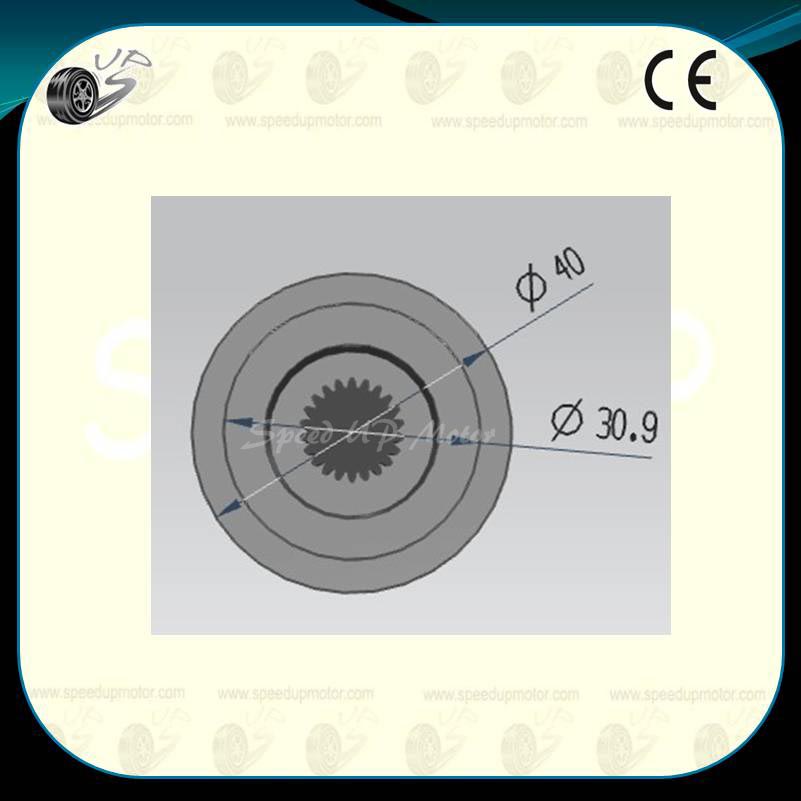

 Diameter:  40mm
 Diameter for axis  6.5mm

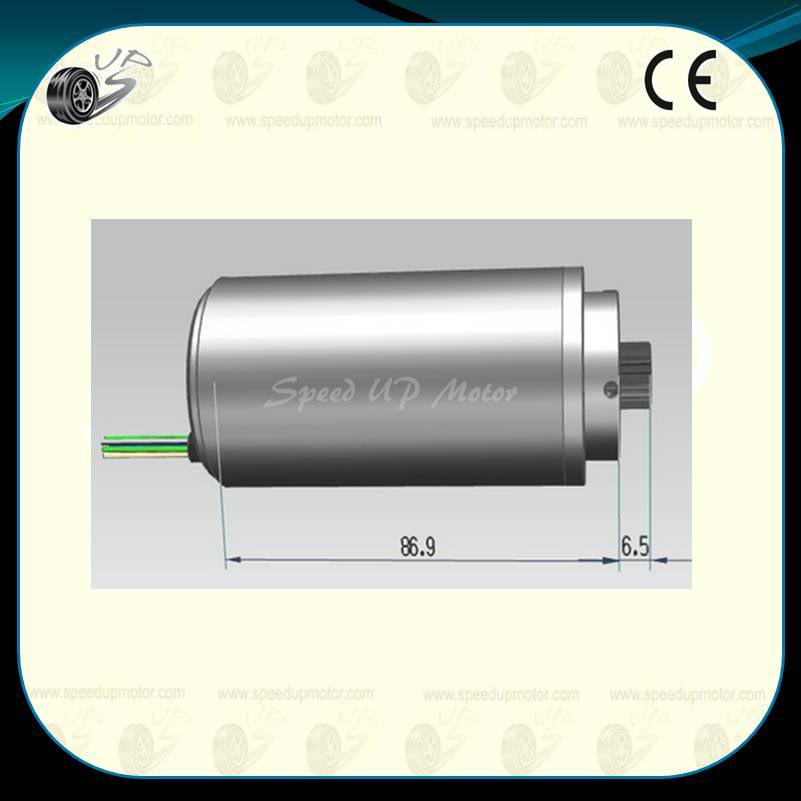

 Motor length  86.9mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis) sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Low speed high power operation, can save the reducer directly drive big load;

*Soft start soft stop, brake performance is good, can save the original mechanical brake or electromagnetic braking device

*High efficiency, no excitation loss of the motor itself and carbon brush loss, eliminating the multilevel reduction consumption, comprehensive energy saving rate can reach 20%~60%

*High reliability, good stability, strong adaptability, simple repair and maintenance;

*Bump resistance vibration, low noise, small vibration, smooth operation, long service life;

*No spark, especially suitable for the places with explosive, explosion proof type;
