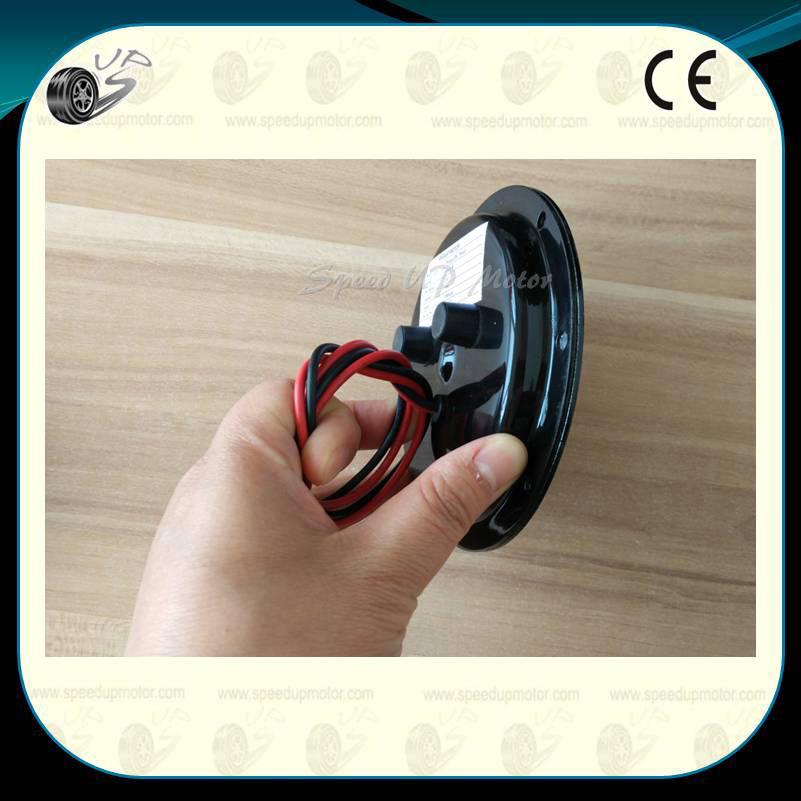

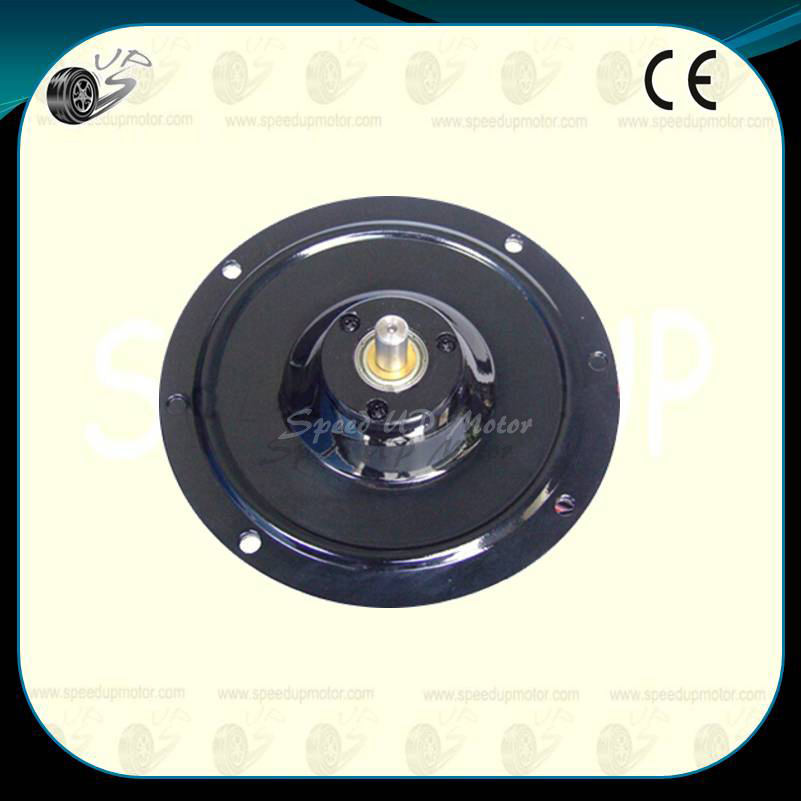

12V65W Pancake Electric Motor,Thin Plate Disc Motor 90SN-A

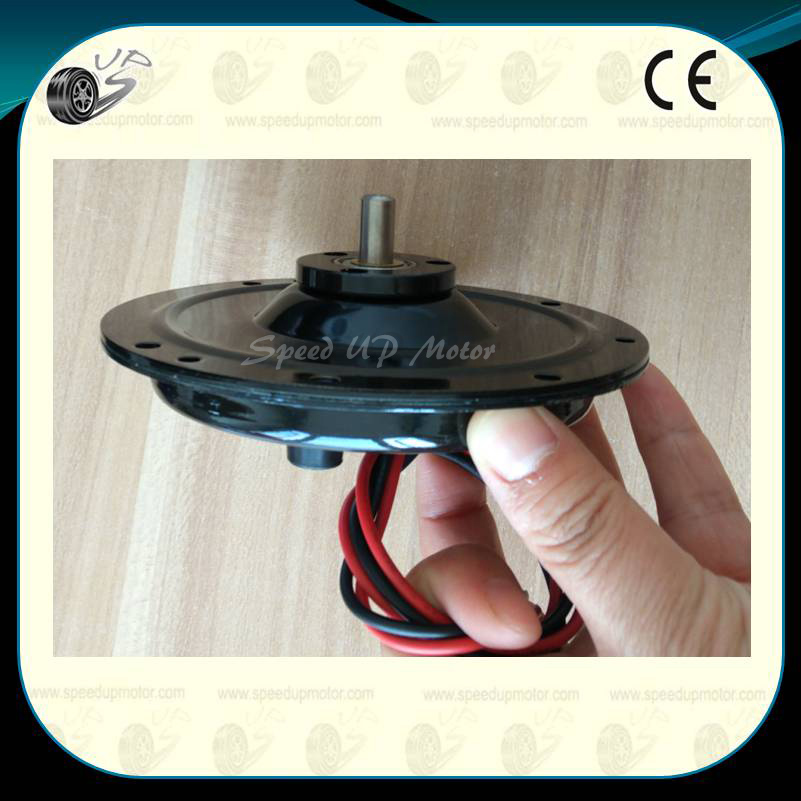

12V65W,1850RPM  Printed Armature Motor

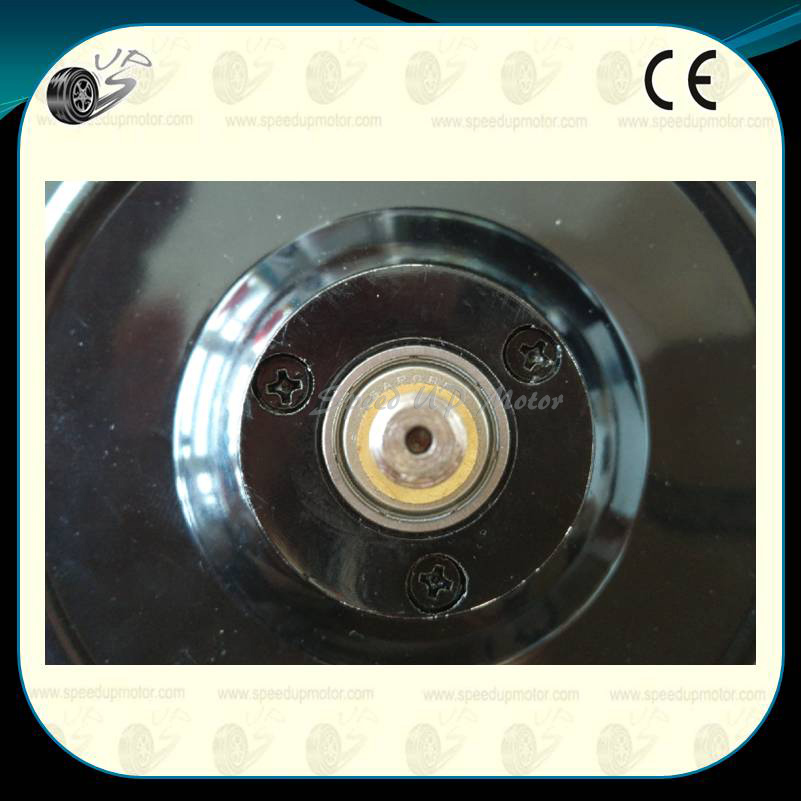

120mm Dia  Pancake DC Motor

Widely applied in Industrial Machine, Small Household Electrical Appliances and So On.

  • Light Weight Motor
  • High power volume
  • Wide speed range
  • High linearity
  • Large output torque
  • Stable running

Product Description


Product types: Pancake DC motor
Model: 90SN-A
Rated power: 65W
Rated voltage: 12V
Rated speed: 1850rpm
Custom made: Yes
Diameter: 120mm
Axis leigth: 15.2mm
Thickness: 17mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Light weight, small volume.

*Big starting torque, wide speed range.

*Low speed operation and good reversing performance.

*Well-developed production technology and the introduction of production line

12v65w-pancake-electric-motorthin-plate-disc-motor-90sn-a-1 12v65w-pancake-electric-motorthin-plate-disc-motor-90sn-a-2
