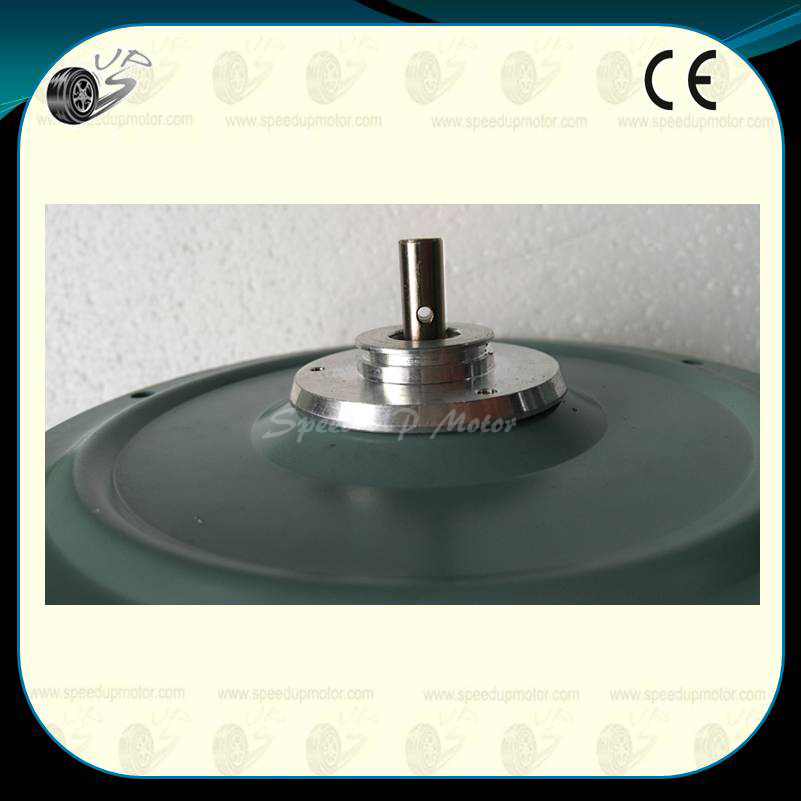

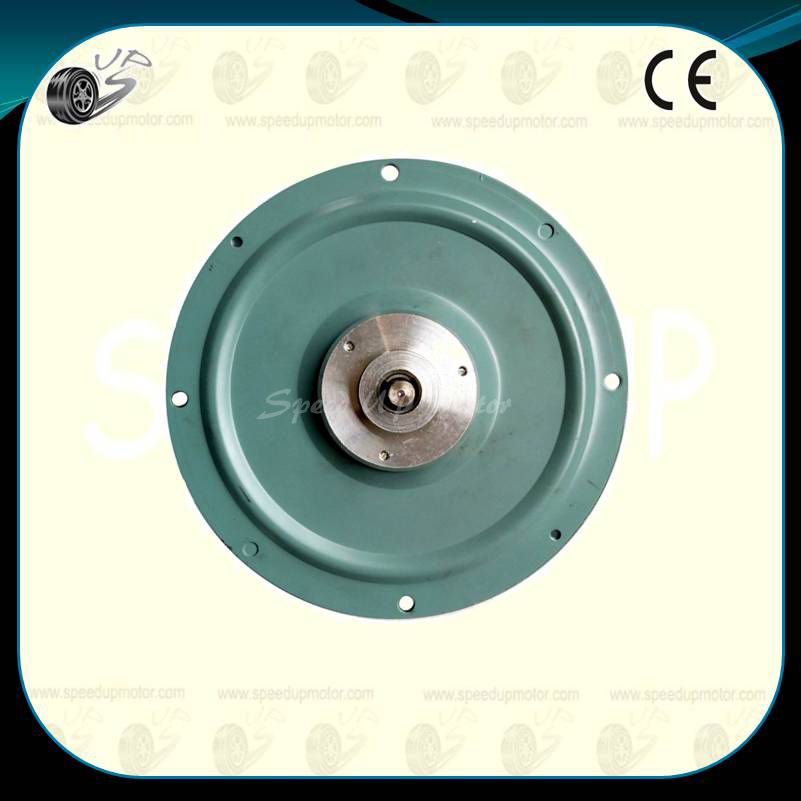

24V75W Disc Servo Printed Motor 120SN


24V75W, 3500RPM  Printed Armature Motor

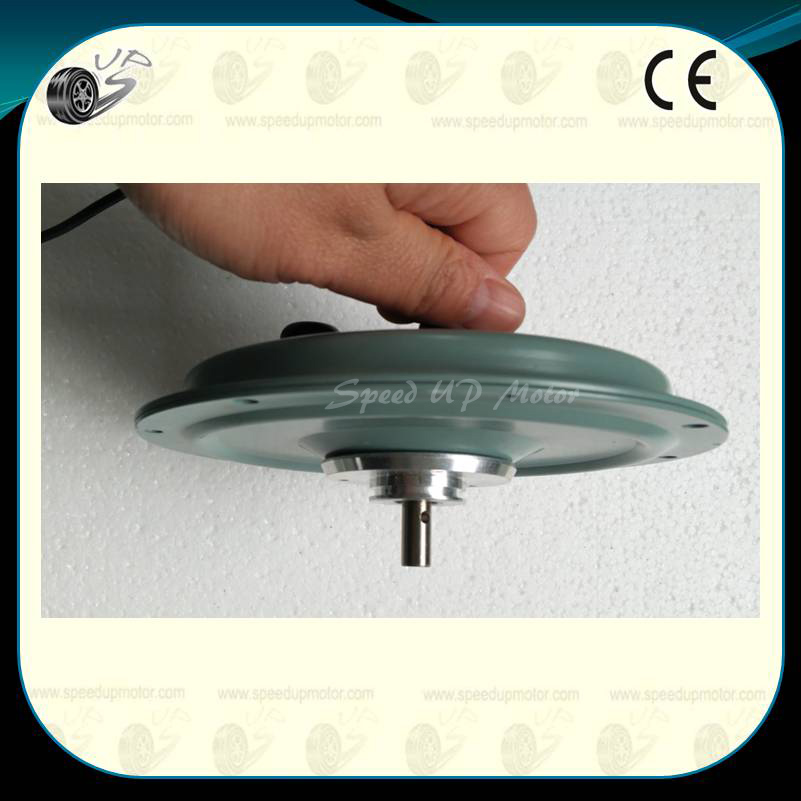

152mm Dia   Thin Plate Motor

Most use in Industrial MachineWire Feeder MotorKnittingmachine and So on.

  • Flat armature technic
  • Ultra slim profile
  • Long service life of brush
  • Low moment of inertia
  • More uniform torque
  • Have higher overload capacity at moment
  • Direction change of no spare
  • Speedy response
  • Low inductance

Product Description


Product types:  Printed DC motor
 Model:  120SN
 Rated power:  75W
 Rated voltage:  24V
 Rated speed:  3500rpm
 Custom made:  Yes
 Diameter:  152mm
 Axis leigth:  25mm
 Thickness:  16mm

Design Options:

  1. Operating voltages to suit
  2. Custom shaft sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations

Competitive Advantage:

*Light weight, Small volume.

*Big starting torque, Wide speed range.

*Low speed operation and good reversing performance.

*Well-developed production technology and the introduction of production line

24v75w-disc-servo-printed-motor-120sn-2 24v75w-disc-servo-printed-motor-120sn-1
